N8900

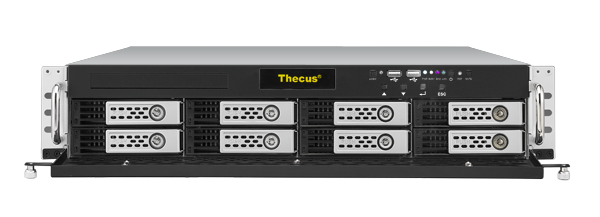

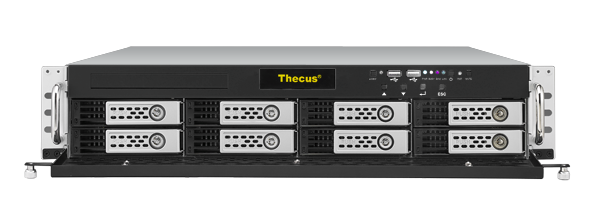

N8900 Full-Featured 2U Rackmount NAS Server
- 2nd Generation Intel® Core™ i3
- High Availability (HA)
- Ultra-Fast SATA III and SAS 6G
- USB 3.0 Connectivity
- HDMI Connectivity
- 10GbE Ready
Awards/Reviews
2012-04-02
Media: Foxnetwork | Country: Russia
“We are very satisfied with the Thecus N8900 we have just tested. This is the fastest 8-bay NAS we have ever seen before. SATA and SAS support makes this device an even more interesting solution for corporate use.”
2012-02-13
Media: CNET Australia | Country: Australia
“…there's also a bunch of modules that add extra functionality, like a newsgroup downloader, a mail server, an IP cam tool, a TwonkyMedia server, a torrent application, Dropbox support and more.”
2012-01-31
Media: PC PRO | Country: UK
“IP SAN performance is excellent as well, with a 100GB target assigned to the Dell server delivering a raw read speed of 112MB/sec over Gigabit. Swapping over to 10GbE saw Iometer report a huge read speed of 780MB/sec, with drag-and-drop file copies returning to 500MB/sec.”
2012-01-17
Media: HWM Malaysia | Country: Malaysia
“The Thecus N8900 is a great NAS that can provide any office with ample mounts of storage for their important data. Besides being easy to setup, the N8900 comes with many features that allows it to be flexible.”
2011-12-12
Media: TweakTown | Country: USA
“…for the first time in a long time I'm walking away satisfied. The hardware is powerful and the software is very refined. Once you throw in how compatible the NAS is with other hardware the picture becomes very clear. The N8900 is a great product that will lead Thecus into a new generation of feature rich products.”
Overview
Thecus already has an 8 bay rackmount NAS, the N8200XXX featuring a quick Intel® Atom™ processor and providing a very good value. This product fills an important niche in the market and provides users with an excellently priced large storage NAS. Before this, Thecus was already known for innovative and powerful appliances such as the N8800SAS with SAS support and heavy-loaded hardware. With the N8900, they’ve decided to go one step further in performance and provide a state of the art NAS device for the most demanding users: USB3.0, HDMI output, and 10Gb Ethernet compatibility are only some of the key features included. Let’s have a closer look.
Powerful Hardware for Superior Performance
 As part of the latest generation of leading CPUs on the market, the Intel® Core™ i3-2120 processor integrates 2 cores at 3.3GHz to match the N8900’s no less than 8GB of DDR3 memory. Fast RAID operations, multitasking, reactive virtualized environments, application serving, and more; anything your business needs.
To maximize your data safety, the N8900 benefits from a unique Thecus feature: Dual DOM design. The DOM (Disk On Module) is the equivalent of the BIOS on a computer: if it fails or gets corrupted for any reason, all your data can be lost forever. Thanks to Thecus Dual DOM design, there is a second DOM ready to replace or reprogram the first one. In this way, Thecus has reduced DOM failures by 67%!
A Design Focused on Flexibility
 The N8900 also embeds what’s best for connectivity: two USB 3.0 ports, audio output/input, and an HDMI connection. Those will also give users even more possibilities when writing their own modules thanks to the brand new Thecus software developer kit.
In addition, the N8900 is built with several free PCI-e extension slots (one 4-lane and two 8-lane slots), which can be used for virtually everything. For instance, you can decide to add more USB 3.0 or eSATA slots. For companies with higher-end needs, you can choose to install a 10Gb Ethernet adapter, allowing you to use either traditional fiber or high-performance/low-cost base-T cables!
Speaking of flexibility, the N8900 is compatible with every common (and not so common) file system: Ext3, Ext4, and XFS. There are also 6 modes of link aggregation supported to maximize performance. Coupled with 6G SAS hard disks, the final results can’t be wrong!
Specs
1.Hardware Platform
| Item |
Spec |
| Processor |
Intel® Core™ i3-2120 (3.3GHz Dual Core) |
| System Memory |
8GB DDR3 SDRAM |
| LAN Interface (PCI-e) |
RJ-45x3: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported |
| USB Interface |
USB 2.0 host port x6 (front x2, back x4) (Type A)
USB 3.0 host port x2 (back x2) |
| LED Indicator |
Power: (Blue)
System busy: (Yellow)
System alert: Redundant power or system fan failure (Red)
HDD 1-8 Activity/Fail (Green/Red) |
| OLED |
Displays system status and information (Multilingual) |
| HDMI Output |
HDMI port (Back x1) |
| Audio |
MIC input, Line input, Audio output |
| SAS/SATA controller (HBA), PCI-e (8-lane) |
LSI 2008 HBA card supports 6G SAS/SATA (x8) |
| 10GbE NIC |
(Optional x3) |
| Disk interface |
8 x SATA/SAS for internal
1 x eSATA for external |
| Power Supply |
Redundant power supply 500W or more |
| PCI-e Slots |
8-lane (x3), One is used by SAS HBA
4-lane (x1)
1-lane (x1) used by CU30N (USB 3.0) |
| Thermal/Fan Control |
Thermal sensor on processor temperature
CPU Fan control |
| System Fan |
Hot swappable (x2) |
| Buttons |
Power button(Front, shutdown controlled by user interface)
LCM button (ENT, ESC, UP, DOWN)
System reset button
Locator button |
| RS232 |
1 (For UPS) |
| Environment |
Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
2U Rack mount |
| Dimensions (HxWxD) |
87 x 437.5 x 595 (mm)/ 3.43 x 17.22 x 23.43 (in)
|
| Weight |
16.67(Kgs)/36.75(lb)(NAS only) |
2. Software Functions
| RAID |
| RAID Modes |
RAID 0, 1, 5, 6, 10, 50, 60 and JBOD |
| Auto-rebuild |
Supported |
| Hot-swap |
Supported |
| Dedicated Hot Spare |
Supported |
| Global Hot Spare |
Supported |
| Online RAID Migration |
Supported |
| Online RAID Expansion |
Supported |
| RAID Volume Encryption |
AES256bit |
| Disk |
| Power Management |
Available spin-down while idle setting |
| Bad Block Scanning |
Supported |
| SMART Info |
Supported |
| SMART Test |
Supported |
| Disk Roaming |
Supports volume-based roaming to other N8900 |
| Network |
| Configuration |
Fixed IP address, dynamic IP address |
| IP sharing mode |
Can be enable/disabled |
| Transport Protocols |
TCP/IP/AppleTalk |
| File Protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP |
| Link Aggregation |
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB |
| Data Access |
| Client OS Support |
Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X |
| FTP |
Build-in FTP server with bandwidth control |
| Secure FTP |
Build-in secure FTP Server with bandwidth control |
| Printer Server (IPP) |
Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface |
| Data Backup |
| Client Incremental Data Backup |
Acronis True image(OEM version) |
| Client System Disaster Recovery |
Acronis True image(OEM version) |
| Single Volume Remote Replication |
Incremental or synchronized (via Rsync module) |
| USB device copy to NAS |
Controlled through LCM |
| Bi-directional USB copy |
Supported (via USB Copy module) |
| MAC time machine |
Supported |
| Block Level Access |
| iSCSI Target/Initiator |
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets |
| iSCSI Thin Provisioning |
Configurable to virtual size 16TB |
| MPIO |
Supported |
| MCS |
Supported |
| Clustering |
Supported |
| SCSI3 persistent group reservation |
Supported |
| Power management |
| Scheduled Power On/Off |
Supported |
| Volume management |
| Multiple RAID |
Supported |
| Multiple File System Selectable |
EXT3/EXT4/XFS |
| Multimedia Support |
| iTunes Server |
Supports AAC, MP3 w/ ID3 tag and WAV |
| Media Server |
Support uPnP AV streaming protocol |
| User Authentication |
| Local User |
Supports built-in user accounts |
| Local Group |
Supports built-in user groups |
| Windows ADS |
Supported |
| File System |
| Type |
Journaling File System |
| Language Support |
Unicode Support |
| Authorization (ACL) |
“Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders |
| User Quota |
Supported |
| Administration |
| User Interface |
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese |
| Utility Program |
MS Windows Setup Wizard,
Supports Windows 2000/XP/2003/Vista/7
Mac OS X Setup Wizard |
| Email Notifications |
Sends system messages via e-mail to the system administrator |
| SNMP Trap |
System information trap out |
| Others |
| Dual DOM |
Supported |
| Recycle Bin |
Supported |
| Web Server |
Supported (via module) |
| ISO Mount |
Supported |
| User Module |
Supported |
| IP Cam Surveillance |
Supports up to 10 IP cameras (via module) |
| HA (High Availability) |
Supported |
Package Contents
 |
 |
 |
 |
| Accessory Bag(with key) |
Ethernet Cable |
Power Cord |
Acronis True Image DVD |
|
 |
 |
 |
| Universal CD |
QIG |
Warranty Card |
HDD Compatibility List Card |
 |
| Sliding Shelves |
