TopTower N10850
TopTower N10850 The World's No.1 Professional NAS
- Intel® Xeon® E3-1225 3.1GHz Processor
- Support of AES-NI encryption for improved performance and security
- HDMI output, Touch panel
- Max capacity supports to 40TB
- Supports 10GbE PCI-e card for faster transfers
- Data security supported by the McAfee® antivirus
Awards/Reviews
2013-07-24
Media: C't | Country: Germany
“The N10850 is the only device in this review-series that is able to act as an iSCSI initiator in order to implement virtual hard disks. Additional hardware-advantages include the possibility to upgrade the device with an 10-Gbit-ethernet card.”
2013-03-29
Media: SmallNetBuilder | Country: USA
“If you're in the market for a 10-bay desktop NAS, you probably should have the Thecus N10850 on your short list.”
Overview
Not everyone can possess a rackmount NAS. If you don’t have the specific infrastructure, it’s not really convenient. However, it’s apparent that everyone requires more and more storage space and file sharing! That’s why Thecus® came out with a brand new tower series with 6, 8 and 10-bay NAS. Each has been designed to be flexible and ideal for specific business network architecture.
TopTower N6850: Versatile Storage Solution
Thecus® is known for releasing NAS of uncommon size to meet customers’ needs. Between the already best-selling N5200XXX and the famous N7700 series, the N6850 perfectly fills the gap.
Featuring an Intel®Pentium® G620 Dual-Core 2.6GHz and 2GB of RAM, this NAS can pile up to 18TB of data capacity. With this power, advanced RAID levels such as RAID10 or RAID50 can be enabled and won’t suffer from CPU lag: not only is your data more secure, but transfers are even faster!
Ideal for multi-users, the N6850 is a premium choice for SMB users willing to centralize their data.
TopTower N8850: Perfect Balance
The previously released N8900 has been acclaimed by the press and Thecus® received a lot of positive feedback. Except one slight issue: what if I need more power in a tower form factor?
Problem solved! The N8850 is an 8-bay tower NAS embedding an Intel® Core ™ i3 and 4GB of RAM. This unit is perfect for demanding businesses requiring frequent and simultaneous tasks at high speeds.

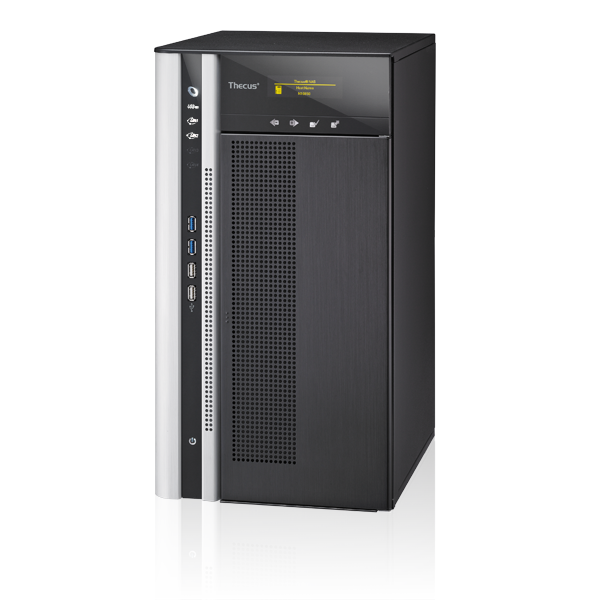

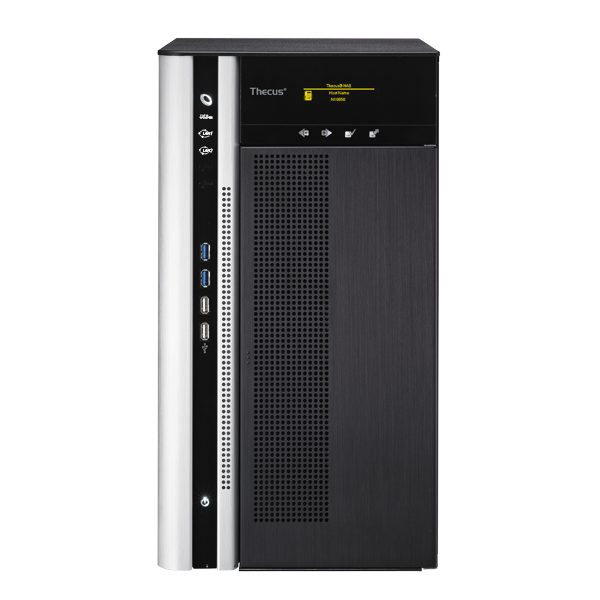

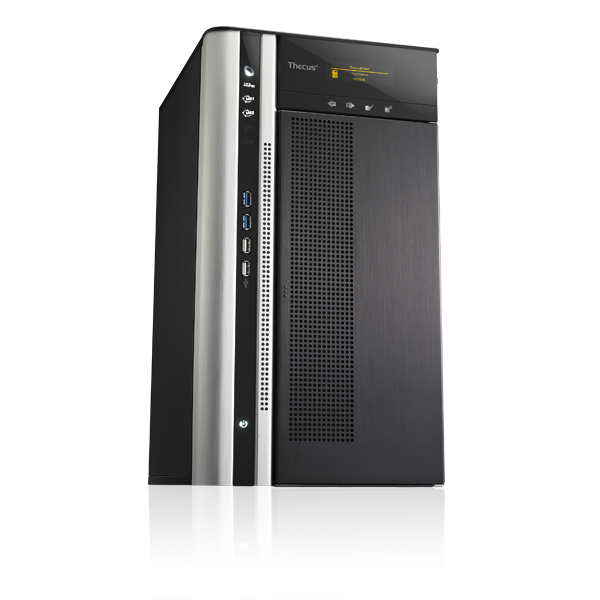

TopTower N10850: Behold Raw Power

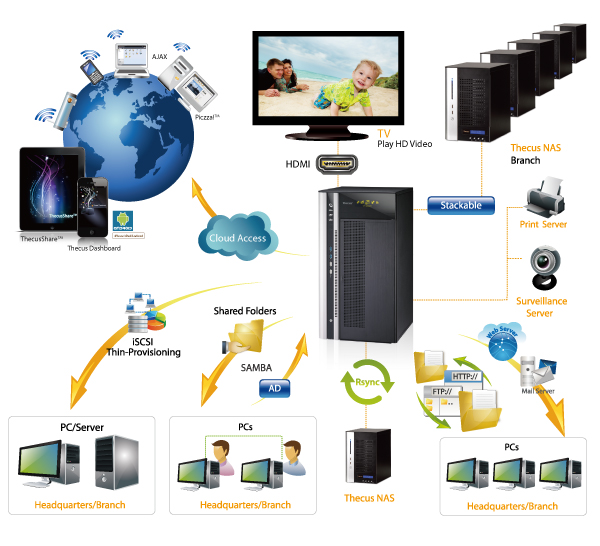

The biggest Thecus® tower NAS by far, the N10850 is here to answer multiple needs within your enterprise, while centralizing all the requests and applications.
To do so, Thecus® equipped it with no less than an Intel® Xeon® E3 Quad-Core 3.1GHz and 4GB of RAM, which already performs well on the N12000V and N16000V. It’s not a dream: power before was limited only to servers inside datacenters but now it’s accessible in a simple tower NAS!
Hosting virtual-machines, application serving for dozen of users, web hosting, heavy backup operation, advanced RAID levels, and so on. The TopTower NAS Series has been designed to bring what’s best in the most convenient format!
Different Yet Similar
The TopTower NAS Series are all 10Gb Ethernet ready and include USB 3.0 slots to eliminate possible bottlenecks. Featuring HDMI output, touch panel convenience, this series is ideal for heavy data management utilizing transfer speeds of 10GbE. In addition, they all benefit from the McAfee® AntiVirus and provide the necessary software protection by scanning the files on your NAS and defending it against possible threats.
Specs
1.Hardware Platform
| Item |
Spec |
| Processor |
Intel® Xeon® E3-1225 (3.1GHz Quad Core) |
| System Memory |
4GB DDR3 |

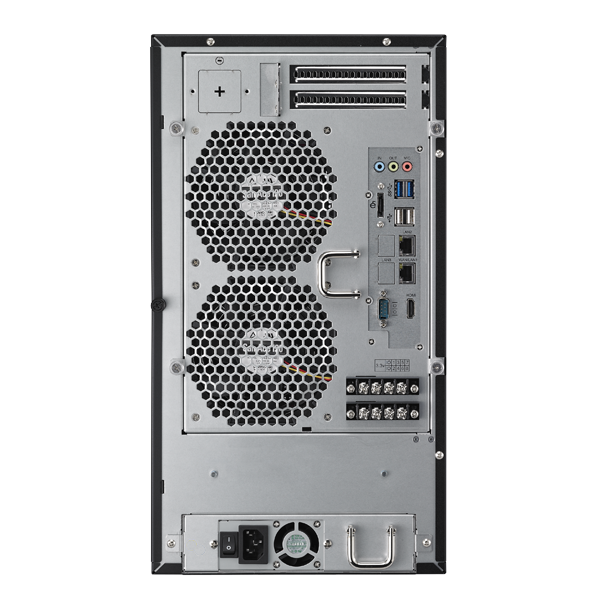

| LAN Interface (PCI-e) |
RJ-45x2: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
PCI Express 8 lane slot x2 |

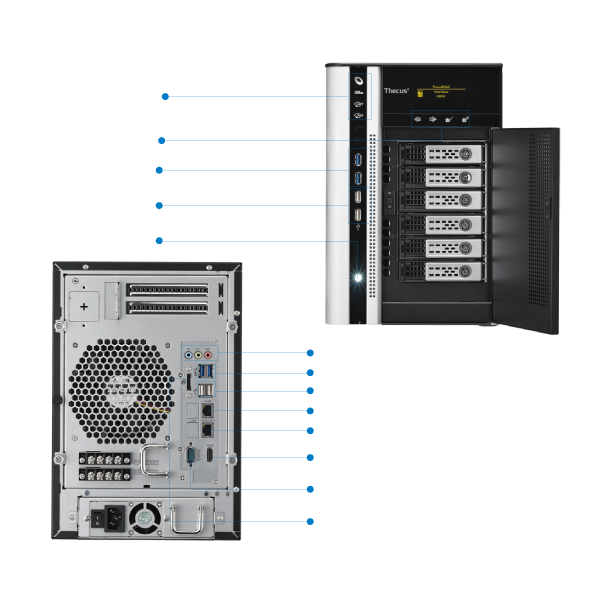

| USB Interface |
USB 2.0 host port x4 (Type A, one has power always on function) (front x2, back x2)
USB 3.0 host port x4 (front x2, back x2) |
| 10GbE NIC |
(Optional x2) |
| OLED |
Displays system status and information (Multilingual) |
| HDMI Output |
HDMI port (back x1) |
| Audio |
MIC input, Line input, Audio output |

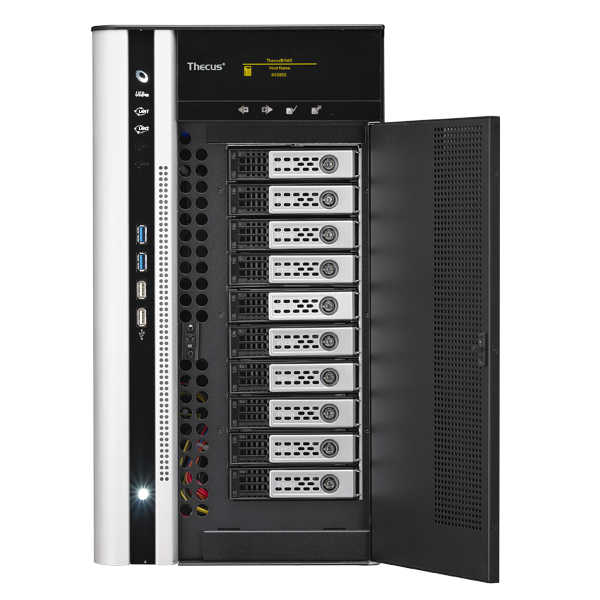

| Disk Interface |
10 x SATA for internal |
| Power Supply |
400W Power Supply (80plus) |
| System Clock |
Battery-backed up system clock |
| Power Management |
Auto power on after shutdown due to power loss |
| Buzzer |
Adjustable frequency alarm |
| Touch Panel |
Power button
OLED button (ENT, ESC, UP, DOWN) |
| Environment |
Temperature: 0°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
Tower base |
| Dimensions (HxWxD) |
435.4 x 235 x 282.6 (mm)/ 17.14 x 9.25x 11.13 (in)
|
| Weight |
12.6(Kgs)1/27.78(lb)(NAS only) |
| Compatibility |
10GbE PCI-e card
USB/slim CD/DVD/Blu-Ray drive
UPS |
2. Software Functions
| RAID |
| RAID Modes |
RAID 0, 1, 5, 6, 10, 50, 60 and JBOD |
| Auto-rebuild |
Supported |
| Hot-swap |
Supported |
| Dedicated Hot Spare |
Supported |
| Global Hot Spare |
Supported |
| Online RAID Migration |
Supported |
| Online RAID Expansion |
Supported |
| RAID Volume Encryption |
AES256bit (Intel AES-NI supported) |
| Disk |
| Power Management |
Available spin-down on idle setting |
| Bad Block Scanning |
Supported |
| SMART Info |
Supported |
| SMART Test |
Supported |
| Disk Roaming |
Supports volume-based roaming to other Thecus NAS |
| Network |
| Configuration |
Fixed IP address, dynamic IP address |
| Transport Protocols |
TCP/IP/AppleTalk |
| File Protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP |
| Link Aggregation |
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB |
| TCP/IP |
IPV6 & IPV4 |
| DDNS |
Supported |
| SSH |
Supported |
| UPnP |
Supported |
| UPnP Port forwarding |
Supported |
| System status |
| System Monitor |
Monitoring CPU, memory, temperature, fan, network utilization and protocols access user count |
| Syslog Management |
Send syslog to assigned location
Act as syslog server to receive log info from other systems |
| Data Access |
| Client OS Support |
Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X |
| FTP |
Built-in FTP server with bandwidth control |
| Secure FTP |
Built-in secure FTP server with bandwidth control |
| TFTP |
Users can download and upload files with TFTP programs |
| Download Manager |
BT download (via Transmission module)
NZB download (via NZB module) |
| Printer Server (IPP) |
Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface |
| Data Backup |
| Client Incremental Data Backup |
Acronis True Image (OEM version) |
| Client System Disaster Recovery |
Acronis True Image (OEM version) |
| Client Side Backup Software |
Thecus Backup Utility (Windows/Mac OS X) |
| Data Burn |
Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS |
| Mac OS X Time Machine |
Supported |
| Data Guard |
Remote Backup/Local Backup |
| Block Level Access |
| iSCSI Target/Initiator |
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets |
| iSCSI Thin Provisioning |
Supported |
| MPIO |
Supported |
| MCS |
Supported |
| Clustering |
Supported |
| SCSI3 Persistent Group Reservation |
Supported |
| Power Management |
| Scheduled Power On/Off |
Supported |
| Volume Management |
| Multiple RAID |
Supported |
| Multiple File System Selectable |
EXT3/EXT4/XFS |
| Multimedia Support |
| iTunes Server |
Supports AAC, MP3 w/ID3 tag and WAV |
| Piczza!™ Photo Server (via module) |
Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows |
| Media Server |
Supports uPnP AV streaming protocol |
| User Authentication |
| Local User |
Supports built-in user accounts |
| Local Group |
Supports built-in user groups |
| Windows ADS |
Supported |
| LDAP |
Supported |
| Access Guard |
Supports Black & White list/IP Filter |
| Cloud Backup |
| DropBox |
Supported (via module) |
| ElephantDriver |
Supported (via module) |
| Amazon S3 |
Supported |
| File System |
| Type |
Journaling File System |
| Language Support |
Unicode Support |
| Authorization (ACL) |
“Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders |
| User Quota |
Supported |
| Administration |
| User Interface |
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, Portuguese, Turkish and Czech. |
| Utility Program |
MS Windows Setup Wizard
Supports Windows 8/7/Vista/2003/XP/2000
Mac OS X Setup Wizard |
| Email Notifications |
Sends system messages via email to the system administrator |
| SNMP Trap |
System information trap out |
| Mobile Applications (iOS/Android) |
| T- Dashboard |
Mobile monitoring and administration (via module) |
| T-OnTheGo™ |
Upload, download and stream multimedia |
| Data Security |
| Virus Scan |
Supports McAfee® (via module) |
| Capacity Expansion |
| Stackable |
Can extend for 5 additional iSCSI volumes from other Thecus NAS |
| Others |
| Recycle Bin |
Supported |
| Web Disk |
Supported (via module) |
| Web Server |
Supported (via module) |
| ISO Mount |
Supported |
| IP Cam Surveillance |
Supports up to 10 IP cameras (via module) |
| Auto Module Installation |
Thecus’ module server automatically provides the latest modules and updates through the user interface. |
| Local Display |
X-Window via HDMI output |
Package Contents
 |
 |
 |
 |
| Accessory Bag(with key) |
Ethernet Cable |
Power Cord |
Acronis True Image DVD |
|
 |
 |
 |
| Universal CD |
QIG |
Warranty Card |
HDD Compatibility List Card |
