N2800
N2800 Share your vision
- Intel® Atom™ Processor (2.13GHz, Dual-Core)
- HDMI Output
- Incredible Transfer Speed
- Flexible Storage Options
- iSCSI Thin Provisioning Support
- Rock-Solid Security
Awards/Reviews
2013-04-22
Media: PC World | Country: Hungary
“The thoroughly designer, solid Thecus NAS gives space for up to two 4TB SATA drive to be inserted in lockable trays. Inside the machine, you’ll find a very powerful Intel Atom D2700 processor which offers plenty of power for a small business as well. The frontal USB 3.0 port can be defined to fun auto-copy jobs, the rear ports can be used to connect a printer or even a UPS. The rear HDMI and VGA outputs independently manage the NAS after the installation of the Local Display module and USB mouse and keyboard.”
2013-03-18
Media: PcBrain | Country: Italy
“The N2800 also contains within it a large number of features, among which unlock the possibility to use the NAS as a media center, full compatibility with iOS and Adroind devices as well as the convenient USB fast COPY button.”
2013-01-23
Media: Xbit Labs | Country: USA
“The Thecus N2800 is a highly attractive offer in terms of its hardware platform. It features a dual-core quad-threaded x86 CPU with a clock rate of over 2 GHz and 2 GB of (upgradable) system memory. besides that, it also has a PCIe slot, two Ethernet controllers and video outputs.”
2012-12-26
Media: PC Professionale | Country: Italy
“The Thecus N2800 NAS is the best rival in the double bay SOHO/SMB market, with leading hardware, complete software and expandable possibilities.”
2012-12-25
Media: Hartware.net | Country: Germany
“Under RAID 1 (mirroring) the write rate with 116-118MB/s is nearly constant. The maximum read speed is unchanged and is about 100MB/s between RAID 0 and RAID 1, thus with almost no difference in speed.”
Overview

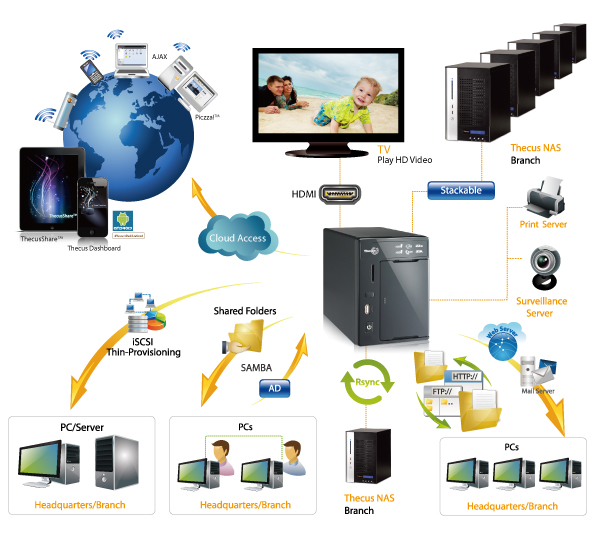

The N2800 is the successor of the N2200XXX. Keeping the SD card reader and elegant LED design, the N2800 has been tweaked after user’s demands.
The N2800 will be one of the first Intel® Atom™ D2.13GHz based NAS! Multimedia-oriented, powerful, silent and well-designed: this NAS is very versatile. Connect it to the TV of the living room to play HD content and/or use it as a backup center for a couple of computers in your small office, possibilities are endless!
USB 3.0: from optional to mandatory
Thecus was the first to launch NAS compatible with USB 3.0 for early adopters. Now that the technology has matured and more USB 3.0 devices exist on the market, it was time to embed it by default! The N2800 has one USB 3.0 port, which are at least 10 times faster than USB 2.0.
3rd generation Intel® Atom™ CPU: silent power
New Intel® Atom™ CPUs are designed to work without fans. This will dramatically reduce noise and power consumption of the NAS.
Associated with large amounts of DDR3, the new Atom™ will provide much better performance. Reaching the limits of Gigabit bandwidth on a “small NAS” is already a standard in the industry, thanks to the N2200XXX, but what if (and you will) want your NAS to give you more? Multi-user environment, web hosting, intense backup, data encryption, application serving, heavy RAID computations, and HD multimedia streaming: welcome to the world of smooth multi-tasking!
HDMI output: removing the middle man
After installing the proper module, just plug a screen on HDMI output, a mouse and keyboard on USB ports and here we go, you don’t even need computer anymore to check on your NAS! You can for instance directly watch videos or browse the Internet from your NAS to your monitor. (*will be available with a FW update by end of June.)
Ideal for small installations and/or mobile users, this feature is designed to lower the total cost of ownership of your network architecture.
A glimpse at the new specifications
- Intel® Atom™ 3rd Generation @2.13GHz
- 2GB of DDR3
- USB 3.0 port
- HDMI output
- SD/SDHC/MMC card reader
Specs

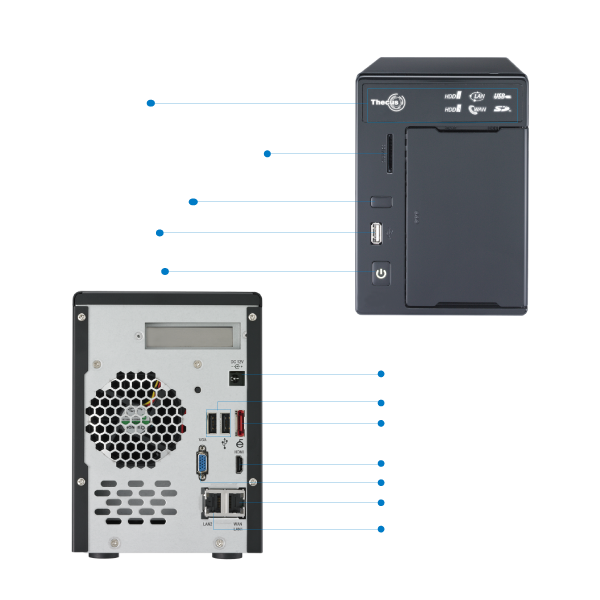

1. Hardware Platform
| Item |
Spec |
| Processor |
Intel® Atom™ Processor (2.13GHz, Dual-Core) |
| System Memory |
2GB DDR3 |

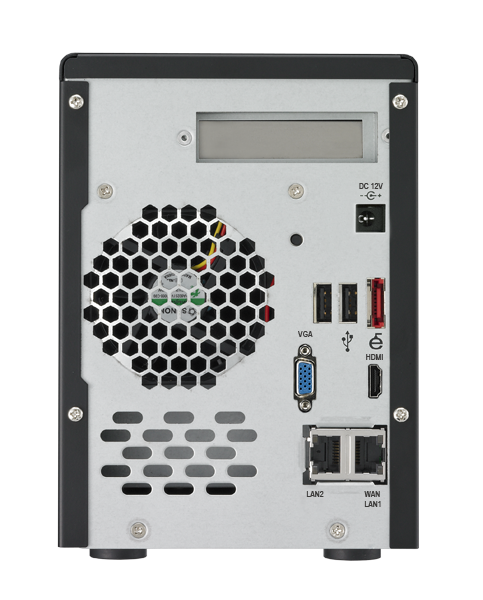

| LAN Interface |
RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported |
| USB Interface |
USB 2.0 host port x2 (back x2)
USB 3.0 host port x1 (front x1) |
| SATA DOM |
1GB |
| HDMI Output |
HDMI port (back x1) |
| VGA Output |
VGA port (back x1) |
| Disk Interface |
2 x SATA for internal
1 x eSATA for external |
| Power Supply |
External power adapter |
| PCI-e x1 Slot |
1 (1 lane) |
| Thermal/Fan control |
Thermal sensor on processor temperature
System FAN speed controlled by temperature |
| System Clock |
Battery-backed up system clock |
| Power Management |
Auto power on after shutdown due to power loss |
| Card Reader |
Support SD/SDHC/MMC |
| Buzzer |
Adjustable frequency alarm |
| Buttons |
Power button
USB copy button |
| Environment |
Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
Tower Metal Chassis |
| Dimensions (HxWxD) |
163.8 x 115.4 x 217.6 (mm) |
| Weight |
2.88(Kgs)/6.35(lb)(NAS only) |
| Certificates |
CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE
VMware, Citrix |
2. Software Functions
| RAID |
| RAID Modes |
RAID 0, 1 and JBOD |
| Auto-rebuild |
Supported |
| Hot-swap |
Supported |
| RAID Volume Encryption |
AES256bit |
| Disk |
| Power Management |
Available spin-down on idle setting |
| Bad Block Scanning |
Supported |
| SMART Info |
Supported |
| SMART Test |
Supported |
| Disk Roaming |
Supports volume-based roaming to other Thecus NAS |
| Network |
| Configuration |
Fixed IP address, dynamic IP address |
| Transport Protocols |
TCP/IP/AppleTalk |
| File Protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP |
| Link Aggregation |
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB |
| TCP/IP |
IPV6 & IPV4 |
| DDNS |
Supported |
| SSH |
Supported |
| UPnP |
Supported |
| UPnP Port forwarding |
Supported |
| System status |
| System Monitor |
Monitoring CPU, memory, temperature, fan, network utilization and protocols access user count |
| Syslog Management |
Send syslog to assigned location
Act as syslog server to receive log info from other systems |
| Data Access |
| Client OS Support |
Windows 8/7/Vista/2003/XP/2000
UNIX/Linux
Mac OS X |
| FTP |
Built-in FTP server with bandwidth control |
| Secure FTP |
Built-in secure FTP server with bandwidth control |
| TFTP |
Users can download and upload files with TFTP programs |
| Download Manager |
BT download (via Transmission module)
NZB download (via NZB module) |
| Printer Server (IPP) |
Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface |
| Data Backup |
| Client Incremental Data Backup |
Acronis True Image (OEM version) |
| Client System Disaster Recovery |
Acronis True Image (OEM version) |
| Client Side Backup Software |
Thecus Backup Utility (Windows/Mac OS X) |
| Data Burn |
Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS |
| Mac OS X Time Machine |
Supported |
| Data Guard |
Remote Backup/Local Backup |
| Block Level Access |
| iSCSI Target/Initiator |
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets |
| iSCSI Thin Provisioning |
Supported |
| MPIO |
Supported |
| MCS |
Supported |
| Clustering |
Supported |
| SCSI3 Persistent Group Reservation |
Supported |
| Power Management |
| Scheduled Power On/Off |
Supported |
| Volume Management |
| Multiple File System Selectable |
EXT3/EXT4/XFS |
| Multimedia Support |
| iTunes Server |
Supports AAC, MP3 w/ID3 tag and WAV |
| Piczza!™ Photo Server (via module) |
Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows |
| Media Server |
Supports uPnP AV streaming protocol |
| User Authentication |
| Local User |
Supports built-in user accounts |
| Local Group |
Supports built-in user groups |
| Windows ADS |
Supported |
| LDAP |
Supported |
| Access Guard |
Supports Black & White list/IP Filter |
| Cloud Backup |
| DropBox |
Supported (via module) |
| ElephantDriver |
Supported (via module) |
| Amazon S3 |
Supported |
| File System |
| Type |
Journaling File System |
| Language Support |
Unicode Support |
| Authorization (ACL) |
“Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders |
| User Quota |
Supported |
| Administration |
| User Interface |
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, Portuguese, Turkish and Czech. |
| Utility Program |
MS Windows Setup Wizard
Supports Windows 8/7/Vista/2003/XP/2000
Mac OS X Setup Wizard |
| Email Notifications |
Sends system messages via email to the system administrator |
| SNMP Trap |
System information trap out |
| Mobile Applications (iOS/Android) |
| T- Dashboard |
Mobile monitoring and administration (via module) |
| T-OnTheGo™ |
Upload, download and stream multimedia |
| Data Security |
| Virus Scan |
Supports McAfee® (via module) |
| Capacity Expansion |
| Stackable |
Can extend for 5 additional iSCSI volumes from other Thecus NAS |
| Others |
| Recycle Bin |
Supported |
| Web Disk |
Supported (via module) |
| Web Server |
Supported (via module) |
| ISO Mount |
Supported |
| IP Cam Surveillance |
Supports up to 5 IP cameras (via module) |
| Auto Module Installation |
Thecus’ module server automatically provides the latest modules and updates through the user interface. |
| Local Display |
X-Window via HDMI output |
Package Contents
 |
 |
 |
 |
| Accessory Bag |
Ethernet Cable |
Power Cord |
Power Adaptor |
 |
|
 |
 |
| Acronis True Image DVD |
Universal CD |
QIG |
Warranty Card |
 |
| HDD Compatibility List Card |
