N4560
N4560 Experience the Revolution
  • Improved Intel® Atom SoC CE5335 processor (1.6GHz)
  • Expanded accessibility with T-OnTheGo mobile access
  • Reimagined module experience with the NAS Application Center
  • Intuitive yet feature-packed Intelligent NAS utility
  • Ultra Energy Efficient
  • 5 Minute Complete Installation
  • Quick NAS Accessibility with Client Utility
  • Easy Connection Through DDNS** (How-to)
  • HDMI Output for Multimedia Playback
  • Auto Flashback Photo Gallery
  • Intelligent NAS Online Resource


Awards/Reviews

2014-07-17
Media: CheckLabs | Country: Russia

The N4560 will satisfy needs of both home and office users: “Thecus has offered a universal solution which can be used in both home and corporate environments; the potential functionality of the system allows users to choose and set up only the desired modules.”

2014-07-03
Media: Madshrimps | Country: Belgium
At a “fair” price and performance tests showing “good results”, the N4560 was recommended for its value by Madshrimps.
2014-05-13
Media: TweakTown | Country: USA

The N4560 was given the Best Value Award by Tweak Town, which concluded, “With the N4560, Thecus offers SOHO networked storage for users that want the best in terms of build quality and price/performance.”

2014-03-05
Media: 59Hardware | Country: France

At the end of the review, we get a strong sense that the Thecus N4560 left a really good impression on 59’Hardware:  “In terms of the transfer rates of files, the new Thecus NAS is very convincing, especially compared to Asustor. With their undeniable expertise in the professional environment, Thecus knows how to optimize its equipment to provide a higher level of performance than many of its competitors.”

2014-02-19
Media: HWM Malaysia | Country: Malaysia

“The Thecus N4560 is definitely worth a look for those who are looking for a high-capacity NAS device that not only serves as a great addition to a home with its multimedia playback capabilities, but also serves as a powerful tool in a small office environment with its many mobile and office-friendly features.”

ويژگی‌ها

  • 5 Minute Complete Installation
    دستگاه N4560 با هدف كاربری و راهبری ساده طراحی شده، دستگاه مذكور اين امكان را به كاربر می‌دهد تا پس از اتصال برق و كابل‌های شبكه در مدت 5 دقيقه بتوان پيكربندی را انجام داده و شروع به استفاده از آن نمائيد.
  • Self-RAID Creation
    كليه دستگاه‌های Thecus مجهز به ابزارهای خودكار مديريت و تحليل فعاليت ديسک سخت می‌باشند كه می‌توان نسبت به ايجاد خودكار ساختار RAID اقدام كرد.
  • Powerful Client Utility
    در كنار استفاده از Web Browser، از طريق اين ابزار نيز می‌توان به دستگاه متصل شد. اين ابزار بر روی كامپيوتر نصب می‌شود و از طريق آن به آسانی می‌توان به دستگاه متصل شد.
  • DDNS
    با استفاده از اين قابليت كاربران می‌توانند با استفاده از نام‌های DNS با آدرس IPهای گوناگون به راحتی به فايل‌های خود دسترسی داشته باشند و محدوديت‌های تغيير در آدرس IP مانع دسترسی از راه اينترنت نخواهد شد.
  • Photo Flashback
    اين ويژگی جديد كه در مدل N4560 يكپارچه می‌باشد، هنگام استفاده از ابزار Client Utility می‌توان تصاوير يكسان در تاريخ گوناگون را به نمايش درآورد.
  • Data Guard
    این تکنولوژی راهکاری نرم‌افزاری برای تهیه نسخه پشتیبان بین دو دستگاه مجزا می‌باشد. با استفاده از تکنولوژی Data Guard می‌توان داده‌های نقطۀ اول (برای مثال RAID و External Storage) و دوم (Thecus NAS) را با رابط کاربری آسان و مدیریت کاربر پسند، همسان‌سازی نمود.
  • Data Burn
    بدون هیچ زحمتی، امکان نوشتن اطلاعات به صورت مستقیم بر روی DVD ،CD و Blu-ray محیا شده است. اين ماژول قابلیت ساخت مدیا از روی فایل‌های ISO، صوتی و متنی را با سرعت بالا و همزمان با کارکرد عادی دستگاه را داراست.
  • Antivirusضد ویروس
    کلیه محصولات ما با مشارکت آنتی ویروس قدرتمند McAfee، کلیه اطلاعات ذخیره شده بر روی خود را به طور منظم و مستمر در برابر تهديدات ناشی از بدافزارها محافظت می‌کنند. این امکان هزینه جداگانه‌ای برای مشتریان Thecus نخواهد داشت.
  • Cloud BackupCloud Backup
    علاوه بر امكان ذخيره‌سازی اطلاعات با تکیه بر تکنولوژی RAID، می‌توان داده‌ها را به سادگی و بصورت Drag and Drop در محیط‌های ابری همانند DropBox و Amazon S3 و ElephantDrive قرار داد تا براحتی بتوان در هر مكان و شرايطی به آنها دسترسی داشت.
  • HDMI Outputخروجی HDMI
    به راحتی می‌توان از طریق خروجی HDMI که توسط این دستگاه پشتیبانی می‌شود، تلویزیون را بصورت مستقیم به دستگاه متصل نمود.

  • USB 3.0 Connectivityاتصالات USB 3.0
    نسل جدید ارتباط (USB 3.0) با سرعتی 10 برابر سریعتر از USB 2.0 توسط این محصول پشتیبانی می‌شود که می‌توان انواع تجهیزات از قبیل دوربین دیجیتال، تلفن‌های هوشمند، هاردهای اکسترنال و ... را با استفاده از این تکنولوژی به دستگاه متصل نمود و از سرعت بالای این فناوری در کنار تکنولوژی‌های قدیمی‌تر (USB 2.0, USB 1.1) استفاده کرد.
  • Acronis True ImageAcronis True Image
    Thecus با مشارکت کمپانی Acronis و تکیه بر نرم‌افزار تهیه نسخه پشتیبان True Image با محیطی ساده و کاربر پسند، این امکان را فراهم می‌کند تا فقط با یک کلیک از فایل های مهم خود نسخه پشتیبان تهیه کنید.
  • Multiple RAIDRAID چندگانه
    Thecus این امکان را فراهم می‌کند تا با استفاده از انواع RAID ها نظیر (0، 1، 5، 6، 10، 50، 60 و JBOD) بتوانید از داده‌های خود محافظت کنید. در صورت عملکرد نادرست و یا معیوب شدن یکی از دیسک‌ها، به سرعت هارد معیوب جایگزین شده و اطلاعات بازنویسی می‌گردند.
  • iSCSI Thin-ProvisioningiSCSI Thin-Provisioning
    با استفاده از این تکنولوژی در کنار سرعت فوق العاده iSCSI می‌توان از فضاهای ذخیره‌سازی خالی موجود به صورت Thin-Provision استفاده نمود و بهره‌وری کلی سیستم در استفاده از منابع را بهبود بخشید.
  • iOS/Android Connectivityاتصالات iOS/Android
    در دنیای جدید دستیابی به اطلاعات از هرجایی جزو مهمترین موضوعات می‌باشد. شما می‌توانید با استفاده از T-OnTheGo و T-Dashboard کلیه اطلاعات را از طریق اتصالات مبتنی بر سیستم عامل‌های iOS/Android ارسال و دریافت نمایید و یا حتی به مدیریت دستگاه NAS بپردازید.
  • User Quota User Quota
    برای مدیریت آسان فضای دیسک‌ها بر روی NAS، می‌توان فضای ذخیره‌‌سازی را میان کاربران تقسیم نمود و به هر کاربر سهم مورد نیاز خود را اختصاص داد.

Overview

Thecus® is proud to announce the release of the latest incarnations of its ground-breaking line of home- and SMB-targeted NAS solutions. The 2-bay N2560 and 4-bay N4560 feature the latest Intel Atom SoCs, increased RAM, as well as all the hardware that made the original models such a success. Thecus® has also striven to improve functionality and productivity through the inclusion of the T-OnTheGo remote accessibility feature and the unveiling of the NAS Application Center online. With improved power and performance along with cutting-edge features, the N2560 and N4560 are pushing the boundaries in home and SMB networking.

“To make the world first even better, we looked first at what made our breakthrough possible: the SoC heart of the NAS. With the performance advances taken care of by Intel’s latest Atom and 2GB of RAM in both models, we turned to the user experience.” - Florence Shih, General Manager of Thecus®

Highlights: Thecus® N2560/N4560

-Improved Intel® Atom SoC CE5335 processor (1.6GHz)
-Both models incorporate 2GB of DDR3 RAM
-Expanded accessibility with T-OnTheGo mobile access
-Reimagined module experience with the NAS Application Center
-Intuitive yet feature-packed Intelligent NAS utility

Intel® Atom CE media processor CE5335: low power, high performance

Thanks to Thecus’s® close relationship with Intel®, we have once again been able to keep on the leading-edge of SoC and NAS integration. With the 30% increase in processing power provided by Intel’s® latest Atom chip, the N2560 and N4560 are able to provide home and SMB users with an unprecedented performance/cost ratio.

Multitasking – now twice as easy

With growing functionality comes growing demands on networks’ multitasking capabilities. To help your home or SMB network keep pace with these and other advances, the N2560 has had its memory doubled to 2GB of advanced DDR3 RAM. With this increase, your NAS can easily accommodate multiple users and their multimedia requirements.

“What we wanted to do with this release was improve both connectivity and usability. As a result, we incorporated support for our new T-OnTheGo app into both models. We also made sure that our new models came preinstalled with Local Display and XBMC so that they could be a plug-and-play media center for users. Finally, we are proud to announce the launch of our online NAS App Center where users can easily find and download the latest official and third-party modules for their Thecus® NAS devices.”

The quickest and most effective way to access your NAS

Available for both the N2560 and N4560 is Intelligent NAS. Our unique tool for accessing your NAS directly without a web browser, Intelligent NAS is a powerful utility that gives you quick and feature-packed access to your stored data. Browse all of your files, see statistics about your stored contents, monitor your NAS activity (copy/download/log), and also personalize, manage and share files all in one easy-to-use application.

Right there with you – wherever you are

We’re a mobile society, and our NAS solutions are keeping up! Incorporated into the N2560 and N4560 is support for Thecus’s® T-OnTheGo smartphone app. Now supporting both iOS and Android, this NAS management software enables users to access, copy, stream, and edit any data between their NAS and mobile device. Your own personal cloud, from anywhere with internet access.

Customisation, at your fingers

To get the most out of your NAS, you need easy access to the official and user-made modules developed for Thecus® products. But how do you make sense of and easily sort through the constantly updating list of applications available on the Thecus® forum? The answer is our newly released NAS Application Center.

Making use of an intuitive layout and numerous already available apps, the NAS Application Center allows users to easily find and download modules based on their type, popularity, and NAS model they were originally designed for.

Ready-To-Go

Furthermore, to get you started, your Intelligent NAS now comes with the most popular modules already preinstalled. As soon as your newly purchased NAS is up-and-running (which will be within 5 minutes of powering it up), you’ll find a powerful media player (XBMC), a leading anti-virus solution (McAfee), photo server software (Piczza), and a BitTorrent client (Transmission) at your fingertips. Simply connect it to your network for a powerful storage solution, or attach it via an inbuilt HDMI port to any display for an advanced media center you’ll love from the start.

The world’s first, now better

Improved connectivity, unbeatable accessibility, an ever-expanding list of features, and an unflinching commitment to quality are the name of the game for the newest additions to the Intelligent NAS line. With the latest Intel® hardware serving a community-focused list of modules, look no further than Thecus’s® N2560 and N4560 for all your home and SMB storage needs.

“We’re proud of the next generation of our entry-level NAS systems. They’ve got the latest advances in hardware and the most user-friendly software yet. We just know you’re going to love them, too.”

Specs

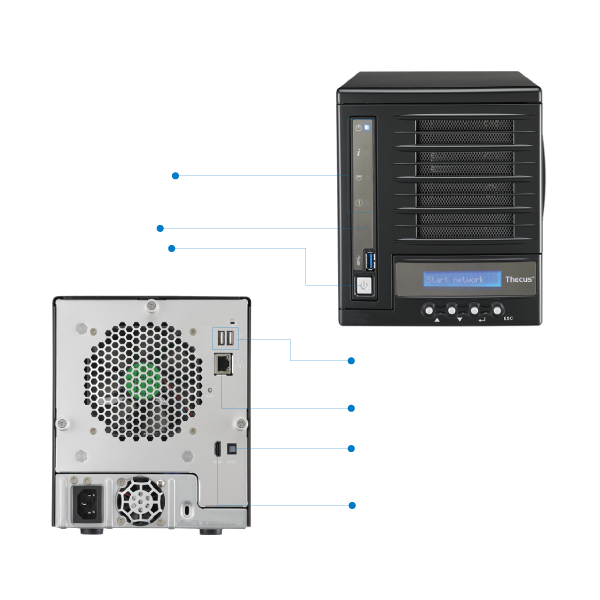

1. Hardware Platform
Item Spec
Processor Intel® Atom SoC CE5335 (1.6GHz Dual Core)
System Memory 2GB DDR3
LAN Interface (PCI-e) RJ-45x1: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported

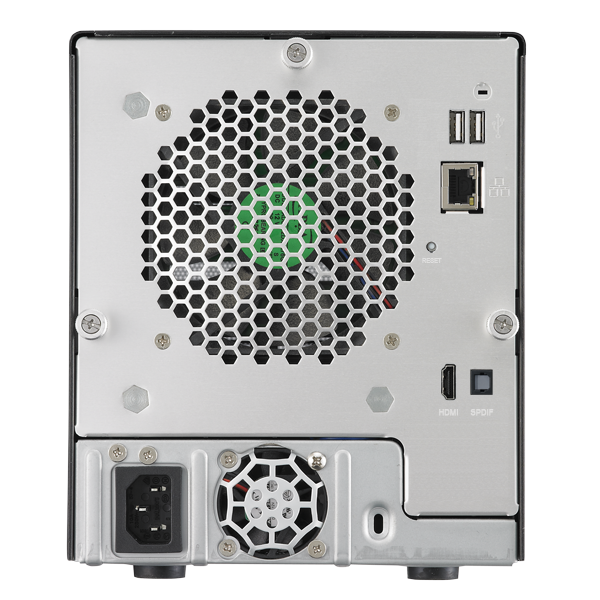

USB Interface USB 2.0 host port x2 (back x2)
USB 3.0 host port x1 (front x1)
LCM Module LCM display
4 buttons (ENTER, ESC, UP, DOWN)
HDMI Output HDMI port (back x1)
Audio Output SPDIF (back x1)
Disk Interface 4 x SATA for internal
Power Supply 150W internal power supply
Power Management Auto power on after shutdown due to power loss
Buttons Power button
Reset button
Environment Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis 4bays Tower
Dimensions (HxWxD) 226 x 165 x 192 (mm)/ 8.9 x 6.49 x 7.55 (in)
Weight 4.72(Kgs)/10.4(lb)(NAS only)
Certificates CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE

2. Software Functions
RAID
RAID Modes RAID 0, 1, 5, 6, 10 and JBOD
Auto-rebuild Supported
Hot-swap Supported
Hot Spare Supported
RAID Level Migration Supported
RAID Level Expansion Supported
RAID Volume Encryption AES256bit
Disk
Power Management *Available spin-down on idle setting
Bad Block Scanning Supported
SMART Info Supported
SMART Test Supported
Disk Roaming Supports volume-based roaming to other Thecus NAS
Network
Configuration Fixed IP address, dynamic IP address
Transport Protocols TCP/IP, AppleTalk
File Protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
TCP/IP IPV6 & IPV4
DDNS** Supported (How-to)
SSH Supported
UPnP Supported
UPnP Port forwarding Supported
System status
System Monitor Monitoring CPU, memory, network utilization and protocols access user count
Syslog Management Send syslog to assigned location
Act as syslog server to receive log info from other systems
Data Access
Client OS Support Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X
FTP Built-in FTP server with bandwidth control
Secure FTP Built-in secure FTP server with bandwidth control
Download Manager BT Transmission
Printer Server (IPP) Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface
Data Backup
Client Incremental Data Backup Acronis True Image (OEM version)
Client System Disaster Recovery Acronis True Image (OEM version)
Data Burn Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS
Mac OS X Time Machine Supported
Data Guard Remote Backup/Local Backup
Block Level Access
iSCSI Target/Initiator Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning Supported
SCSI3 Persistent Group Reservation Supported
Power Management
Scheduled Power On/Off Supported
Volume Management
Multiple RAID Supported
File System EXT4
Multimedia Support
iTunes Server Supports AAC, MP3 w/ID3 tag and WAV
Piczza! Photo Server (via module) Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows
Right click to publish on social network like FB (Intelligent NAS)
Media Server Supports uPnP AV streaming protocol
User Authentication
Local User Supports built-in user accounts
Local Group Supports built-in user groups
Windows ADS Supported
LDAP Supported
Cloud Backup
DropBox Supported
ElephantDriver Supported
Amazon S3 Supported
File System
Type Journaling File System
Language Support Unicode Support
Authorization (ACL) “Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders
User Quota Supported
Administration
User Interface Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese.
Utility Program (Intelligent NAS) MS Windows Setup Wizard
Supports Windows XP and after
Windows Server 2003 and after
Mac OS X Setup Wizard
Email Notifications Sends system messages via email to the system administrator
SNMP Trap System information trap out
DDNS Support one free DDNS registration (ex. xxx.thecuslink.com)
UPnP and Port forwarding Support auto setting in Intranet environment
5 Minute Complete Installation Go through defined URL for auto install (Intelligent NAS)
Client Utility (Intelligent NAS) 1. Auto flashback photo gallery
2. BT download
3. File manager
4. Piczza
5. WebDisk
Mobile Applications (iOS/Android)
T- Dashboard Mobile monitoring and administration (via module)
T-OnTheGo Upload, download and stream multimedia
Data Security
Virus Scan Supports McAfee®
Local Display
HDMI/Audio *Supported
DVB-T *Supported
Others
Recycle Bin Supported
Web Server Supported
ISO Mount Supported
UPS Supported

* Supported upon official firmware or application release of these features.
*The XBMC application found in our N2520/N2560/N4520/N4560 units is a beta release. We are busy working closely with Intel on an official full release.
**Thecus ID & DDNS setup requirements: An ADSL or Cable modem and router (that supports configurable UPnP port forwarding or IGD).

Package Contents

Accessory Bag(with key) Ethernet Cable Power Cord QIG
Warranty Card HDD Compatibility List Card All in one DVD

NAS 101

  • Are OS6 series USB patches and tools compatible between both systems (i.e. N2310 vs N2520/ N2560/ N4520/ N4560)?

    Because the N2310 and N2520/ N2560/ N4520/ N4560 are based on differing architecture (PowerPC vs. ARM), USB patches and tools are unfortunately incompatible between the two systems.

  • Can a drive with a RAID volume and OS6 roam between an N2310 & an N2520/ N2560/ N4520/ N4560?

    Because the N2310 and N2520/ N2560/ N4520/ N4560 are based on differing architecture (PowerPC vs. ARM), drives with RAID volumes and OS6 are unfortunately unable to roam between the two systems.

  • How to confirm that your N2520/ N2560/ N4520/ N4560 OS6 NAS are able to retrieve updates

    ****************If your OS version is OS6.build_168~176****************
    1. Please confirm that your PC or NAS is able to retrieve the correct IP address from download.thecuslink.com. The IP address should be 218.161.8.104.

    2. If your NAS and PC share the same DNS, you can confirm this using your PC:
    A. Windows key + R (Run). In the dialog box, type "cmd" and press Enter.
    B. In the DOS command prompt window type=>"ping download.thecuslink.com"

    C:>ping download.thecuslink.com
    Pinging download.thecuslink.com [218.161.8.104] with 32 bytes of data:

    C. If the system responds with "download.thecuslink.com [218.161.8.104]", it means that your PC has reached the update server correctly. Therefore, if your NAS and PC share the same DNS configuration, the NAS should be able to update correctly.


    **************** If your OS version is OS6.build_176 and above****************
    1. Please confirm that your PC or NAS is able to retrieve the correct IP address from ftp://ftp.thecus.com/. The IP address should be 108.167.136.136.

    2. If your NAS and PC share the same DNS, you can confirm this using your PC:
    A. Windows key + R (Run). In the dialog box, type "cmd" and press Enter.
    B. In the DOS command prompt window type=>"ping ftp://ftp.thecus.com/"

    C:>ping ftp://ftp.thecus.com/
    Pinging ftp://ftp.thecus.com/ [108.167.136.136] with 32 bytes of data:

    C. If the system responds with "ftp://ftp.thecus.com/ [108.167.136.136]", it means that your PC has reached the update server correctly. Therefore, if your NAS and PC share the same DNS configuration, the NAS should be able to update correctly.

  • How to remove OS6 from your N2520/ N2560/ N4520/ N4560 while keeping the drive data intact

    **CAUTION THIS WILL REMOVE OS6 FROM THE DRIVES. WHILE YOUR DATA WILL REMAIN, YOU WILL NEED TO REINSTALL OS6 FOR THE DATA TO BECOME AVAILABLE AGAIN**
    Please download the following USB tool and follow the below steps:
    http://www.thecus.com/Downloads/FW/OS6/OS6_remove_HDD_OS_V1.1.zip

    A. Find an empty USB drive.
    B. Unzip OS6_remvoe_HDD_OS_V1.1.zip to the USB drive.
    C. The USB drive should now have a folder called "gofactory" in it with one file "factory_test.sh" inside.
    D. Plug in the USB drive and power up the NAS.
    E. Wait until system beeps and system powers off automatically.
    F. OS6 should now be removed from the drives. You will need to reinstall OS6 again to be able to access your data.


    Example USB drive root.
    │  OS6_remvoe_HDD_OS_V1.1.txt

    └─gofactory
            factory_test.sh

  • Installing and Setup MySQL-kit

    Installation and setup guide for MySQL (open-source relational database management system) and phpMyAdmin (a free and open source tool written in PHP intended to handle the administration of MySQL with the use of a web browser).

    English
  • Installing and Setup Web Server

    • Installing Webserver module
    • Start setting up the Web Server configuration

    English

Connecting to your NAS

  • How To Guides: Piczza Photo Server

    The new Piczza photo server provides a completely new interface and many new functions. The new module makes editing, organizing, and sharing photos easier than ever.

    English
  • How to publish your NAS on the internet

    This guide will show you how to publish your NAS on the Internet, this allows you to access and configure your NAS files via the internet remotely.

    English 繁體中文
  • How to use Aria2:Downloading via your NAS

    Aria2 is a lightweight multi-protocol & multi-source command-line download utility. It supports HTTP/HTTPS, FTP, BitTorrent and Metalink. aria2 can be manipulated via built-in JSON-RPC and XMLRPC interfaces.

    English
  • How-to Guide: Transmission (BitTorrent Client)

    Transmission is a cross-platform BitTorrent client.

    English
  • How-to Guide:PLEX (Media Server)

    Plex is a media player system consisting of a player application with a 10-foot user interface and an associated media server.

    English 繁體中文
  • Installing and Using XBMC

    Appealing to a broad range of users, XBMC is an open source media center which was originally created for Xbox. Its graphical user interface (GUI) allows the user to easily browse and view videos, photos, podcasts, and music using only a few buttons.
    Currently, XBMC can be used to play almost all popular audio and video formats around directly from your hard drive. XBMC features playlist and slideshow functions, a weather forecast, and many audio visualizations.

    English

Backup and Data Security

  • Installing and Using Dropbox(Thecus® OS6)

    Before installing and using the Dropbox module, there needs to be at least one user
    account on Thecus®OS6. If you have already created a user account, please skip
    section 1.
    You will also need to have already set up a Dropbox account.

    English
  • Installing and Using McAfee

    McAfee Antivirus is the best safeguard measure to detect and prevent virus attacks. With McAfee , users can rest assure that their vital data is protected with advanced features to eliminate possible threats.

    English
