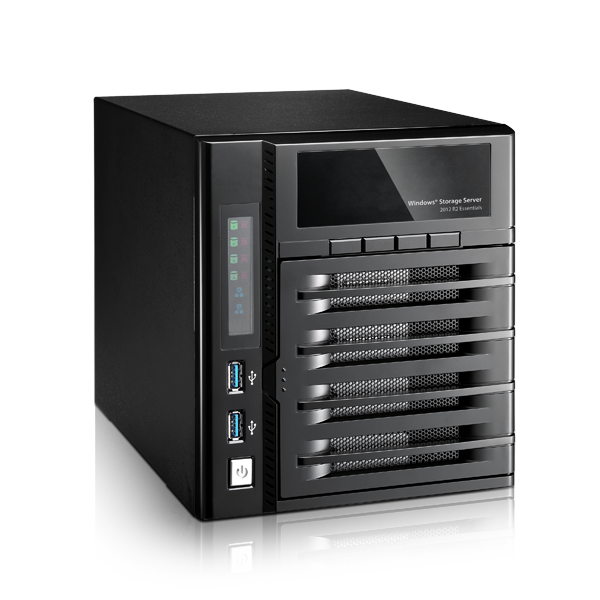

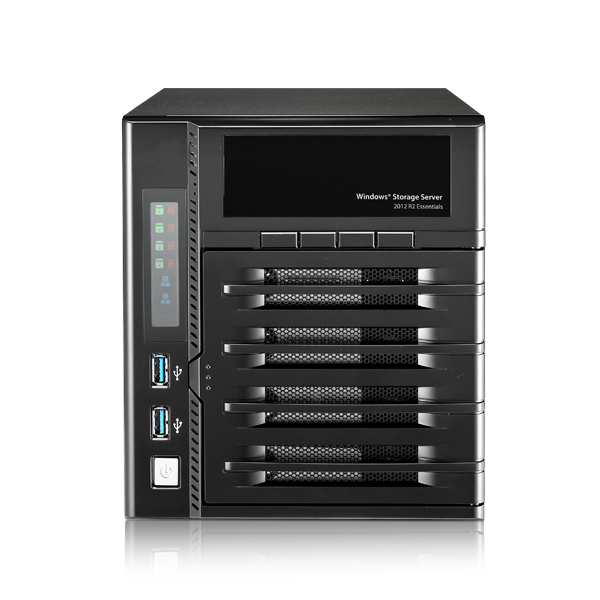

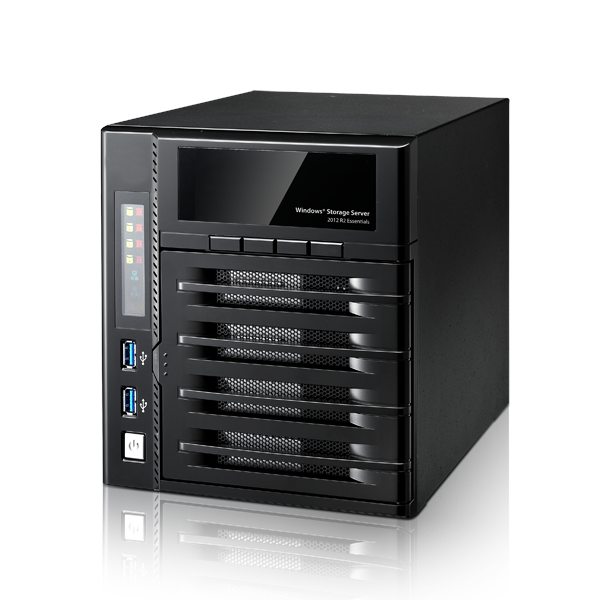

+W4000/W4000
W4000/W4000+
Affordable Easy-to-Use Cloud Ready Storage
- Top Storage for 1-50 Employee Business
- Office 365 & Microsoft Azure: Cloud Service Integration
- Active Directory Domain Services: Scalable, Secure User Management
- Data Deduplication: Performance Optimization
- Enhanced Boot Drive: Embedded 60GB SSD
- Windows License Included
- Available with 2 GB of DDR3 RAM (W4000) or 4 GB of DDR3 RAM (W4000+)
Features
Specifications
Compatibility
Downloads
Enhanced Boot Drive: Embedded SSD
To ensure the best performance possible, each WSS 2012 R2 Essentials copy is pre-installed on an embedded solid state drive. These boot drives are independent from the drive bays and allow for seamless setup and integration.

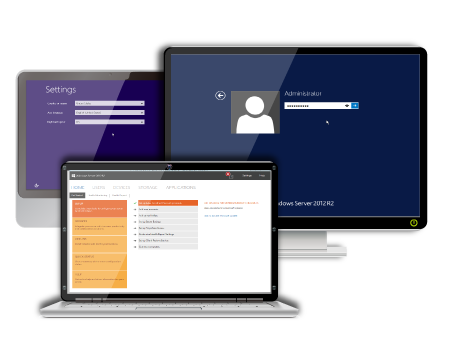

Windows Storage Server 2012 R2 Essentials
Windows Storage Server 2012 R2 Essentials is the latest version of Windows Storage Server that is designed for small businesses that want to leverage cloud services in a NAS appliance. It enables cross-premise functionality, providing small businesses with robust on-premises solution for file and print, client backup and restore, secure remote access, and identity management services, combined with optional off-premise services supported by Microsoft.
>>More
Built-in HDMI Output
Turn your NAS into the ultimate multimedia hub! An inbuilt HDMI output allows you to connect your NAS directly to your TV for media streaming and easy device management.
USB 3.0 Connectivity
The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.
P2P Connectivity
Pre-installed with the Ultimate Package from Orbweb, users will be able to easily transform their Windows NAS into their own personal cloud without network configuration. Enjoy an always accessible cloud experience, while keeping your data in your hands.
>>More
| Windows Storage Server Comparison Chart |
| |
Workgroup |
Standard |
Essentials |
| Ability to join a domain |
Yes |
Yes |
Yes |
| Data Deduplication |
No |
Yes |
Yes |
| BranchCache- Hosted Cache |
NO |
Yes |
Yes |
| Virtualization |
No Hyper-V |
Yes (2 VMs) |
No Hyper-V |
| Failover Clustering |
No |
Yes |
No |
Networking infrastructure
(including DNS, DHCP, and WINS) |
Yes |
Yes |
Yes |
| Windows Server Essentials Experience |
No |
No |
Yes |
Active Directory
(Domain Controller, Certificate Services,
Federation Services, Rights Management) |
No |
No |
Yes |

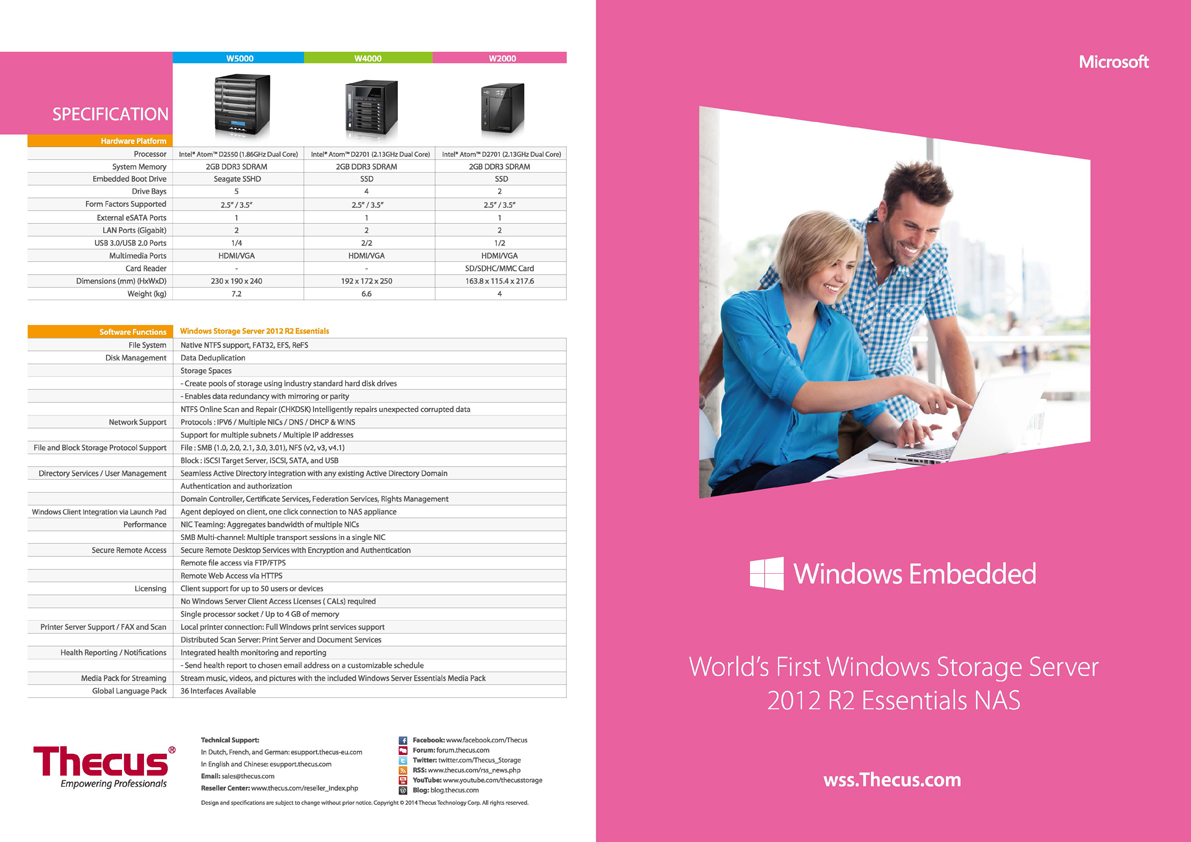

| Hardware Platform |
|
| Processor |
Intelآ® Atomâ„¢ D2701 (2.13GHz Dual Core) |
| System Memory |
2GB DDR3(W4000)/4GB DDR3(W4000+) |
| Embedded Boot Drive |
60GB SSD |

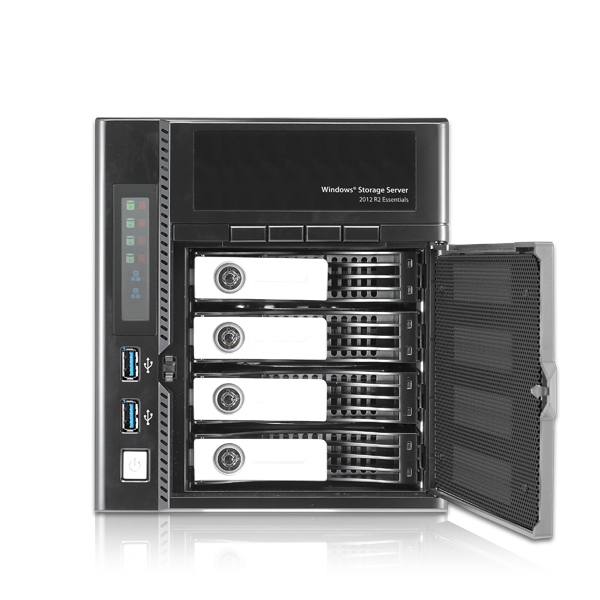

| Drive Bays |
4 |
| Form Factors Supported |
2.5" / 3.5" |
| LAN Interface |
RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported |
| USB Interface |
USB 2.0 host port x2 (back x2)
USB 3.0 host port x2 (front x2) |
| HDMI Output |
HDMI port (back x1) |
| VGA Output |
VGA port (back x1) |
| Audio |
Line output |
| Disk Interface |
4 x SATA for internal
1 x eSATA for external |
| Power Supply |
External power adapter |
| PCI-e x1 Slot |
1 (1 lane) |
| System Clock |
Battery-backed up system clock |
| Power Management |
Auto power on after shutdown due to power loss |
| Buzzer |
Adjustable frequency alarm |
| Buttons |
Power button |
| Environment |
Temperature: 5آ°C to 40آ°C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
Tower Metal Chassis |
| Dimensions (HxWxD) |
192 x 172 x 250 (mm)/ 7.56 x6.77 x 9.84 (in) |
| Weight (Kgs) |
6.6 |
| Software Functions |
Windows Storage Server 2012 R2 Essentials |
| File System |
Native NTFS support, FAT32, EFS, ReFS |
| Disk Management |
Data Deduplication
Storage Spaces:
- Create pools of storage using industry standard hard disk drives
- Enables data redundancy with mirroring or parity
NTFS Online Scan and Repair (CHKDSK) Intelligently repairs unexpected corrupted data |
| Network Support |
Protocols : IPV6 / Multiple NICs / DNS / DHCP & WINS
Support for multiple subnets / Multiple IP addresses |
| File and Block Storage Protocol Support |
File : SMB (1.0, 2.0, 2.1, 3.0, 3.01), NFS (v2, v3, v4.1)
Block : iSCSI Target Server, iSCSI, SATA, and USB |
| Directory Services / User Management |
Seamless Active Directory integration with any existing Active Directory Domain
Authentication and authorization
Domain Controller, Certificate Services, Federation Services, Rights Management |
| Windows Client Integration via Launch Pad |
Agent deployed on client, one click connection to NAS appliance |
| Performance |
NIC Teaming: Aggregates bandwidth of multiple NICs
SMB Multi-channel: Multiple transport sessions in a single NIC |
| Secure Remote Access |
Secure Remote Desktop Services with Encryption and Authentication
Remote file access via FTP/FTPS
Remote Web Access via HTTPS |
| Licensing |
Client support for up to 50 users or devices
No Windows Server Client Access Licenses ( CALs) required
Single processor socket / Up to 4 GB of memory
P2P connectivity via Orbweb (Ultimate edition) |
| Printer Server Support / FAX and Scan |
Local printer connection: Full Windows print services support
Distributed Scan Server: Print Server and Document Services |
| Health Reporting / Notifications |
Integrated health monitoring and reporting
- Send health report to chosen email address on a customizable schedule |
| Media Pack for Streaming |
Stream music, videos, and pictures with the included Windows Server Essentials Media Pack |
| Global Language Pack |
36 Interfaces Available |
| HDD/SSD Compatibility List |
|
| Release Date |
2015-03-12 |
| Version |
20150312 |
| Downloads |
 |
| USB External HDD Compatibility List |
|
| Release Date |
2014-10-24 |
| Version |
20141024 |
| Downloads |
|
| UPS Compatibility List |
|
| Release Date |
2014-10-24 |
| Version |
20141024 |
| Downloads |
|
| Memory Compatibility List |
|
| Release Date |
2015-03-11 |
| Version |
20150311 |
| Downloads |
|
|
|
