Features

• دسترس‌پذيری بالا
  برای اولین بار، کلیه اطلاعات شما بطور كامل و بدون تاخير در دسترستان می‌باشد. اين ويژگی همه اطلاعات را به طور جداگانه بر روی دو دستگاه NAS يكسان نگهداری می‌كند و درصورت بروز هرگونه رخدادی بر روی يكی از دستگاه‌ها، ديگری بدون وقفه شروع به سرويس دهی می‌كند.

• Daisy Chaining
  With daisy chaining, users now have the ability to cost effectively increase their storage volume while maintaining fast transfers. To set up a daisy chain, one master NAS unit is installed as a controller with up to two DAS linked as slaves. SAS cables are then used to link the units together in order to ensure rapid speeds. The ability to reach tremendous capacities while saving nearly 30% on hardware costs (versus traditional storage architecture) is something truly groundbreaking in the industry.

• SATA III and SAS 6G
  دستگاه‌های ذخيره‌سازی Thecus از تكنولوژی SATA III و SAS برای اتصال هاردهای داخلی با سرعت انتقال 6Gbit/s پشتيبانی می‌کنند.

• PLEX Media Center
  The Plex Media Server is both the heart and brains for any digital media system. The free server is a module available on the Thecus® App Center that allows you to set up and manage your media. With the Plex Media Server installed on your Thecus® NAS, various devices on your network (such as your Xbox 360 and mobile devices) can connect to and stream your local and online media.

• Snapshot Backup
  With BTRFS support, Thecus NAS users can enjoy the simplicity of snapshot backups. Through BTRFS subvolumes, snapshots of data at various time points can be manually or automatically made and just as easily later restored to rollback files or folders to previous states.

• Disk Clone and Wipe
  Disk Clone allows users to copy the entire contents of a disk to one or many other disks while Disk Wipe allows for permanent volume data destruction.

• VPN Server
  A VPN Server allows users to remotely access a secure network.  with VPNs, businesses will be able to utilize a cost-effective, scalable and secured network infrastructure for its client base.

• 10GbE Ready
  بطور معمول مراکز داده نیاز به سطحی بالاتر از طیف سرعت ارتباطات معمول امروز دارند. شركت Thecus از تکنولوژی 10GbE بر روی کلیه محصولات خود پشتیبانی می‌کند و آماده پاسخ گویی به نیازهای امروز و فردا است.


• اتصالات USB 3.0
  نسل جدید ارتباط (USB 3.0) با سرعتی 10 برابر سریعتر از USB 2.0 توسط این محصول پشتیبانی می‌شود که می‌توان انواع تجهیزات از قبیل دوربین دیجیتال، تلفن‌های هوشمند، هاردهای اکسترنال و ... را با استفاده از این تکنولوژی به دستگاه متصل نمود و از سرعت بالای این فناوری در کنار تکنولوژی‌های قدیمی‌تر (USB 2.0, USB 1.1) استفاده کرد.

• Acronis True Image
  Thecus با مشارکت کمپانی Acronis و تکیه بر نرم‌افزار تهیه نسخه پشتیبان True Image با محیطی ساده و کاربر پسند، این امکان را فراهم می‌کند تا فقط با یک کلیک از فایل های مهم خود نسخه پشتیبان تهیه کنید.

• RAID چندگانه
  Thecus این امکان را فراهم می‌کند تا با استفاده از انواع RAID ها نظیر (0، 1، 5، 6، 10، 50، 60 و JBOD) بتوانید از داده‌های خود محافظت کنید. در صورت عملکرد نادرست و یا معیوب شدن یکی از دیسک‌ها، به سرعت هارد معیوب جایگزین شده و اطلاعات بازنویسی می‌گردند.

• فایل سیستم چندگانه
  پشتیبانی از فایل سیستم های مختلف (EXT3, EXT4, Btrfs, XFS) باعث انعطاف‌پذیری سیستم می‌شود و این امکان را فراهم می‌کند تا کاربر به راحتی در محیط‌های مختلف بصورت همزمان به اطلاعات خود دسترسی پیدا کند.

• iSCSI Thin-Provisioning
  با استفاده از این تکنولوژی در کنار سرعت فوق العاده iSCSI می‌توان از فضاهای ذخیره‌سازی خالی موجود به صورت Thin-Provision استفاده نمود و بهره‌وری کلی سیستم در استفاده از منابع را بهبود بخشید.

• اتصالات iOS/Android
  در دنیای جدید دستیابی به اطلاعات از هرجایی جزو مهمترین موضوعات می‌باشد. شما می‌توانید با استفاده از T-OnTheGo و T-Dashboard کلیه اطلاعات را از طریق اتصالات مبتنی بر سیستم عامل‌های iOS/Android ارسال و دریافت نمایید و یا حتی به مدیریت دستگاه NAS بپردازید.

• Rsync
  این تکنولوژی امکان پشتیبان‌گیری از راه دور را مبتنی بر سیستم عامل لینوکس ارائه می‌نماید.

• User Quota
  برای مدیریت آسان فضای دیسک‌ها بر روی NAS، می‌توان فضای ذخیره‌‌سازی را میان کاربران تقسیم نمود و به هر کاربر سهم مورد نیاز خود را اختصاص داد.


• درگاه PCI-e
  این درگاه امکان استفاده از فناوری‌های نوظهور را فراهم می‌نماید. شما می‌توانید با این درگاه لذت استفاده از کارتهای شبکه 10G و کارت های آداپتور USB 3.0 را داشته باشید.

Overview

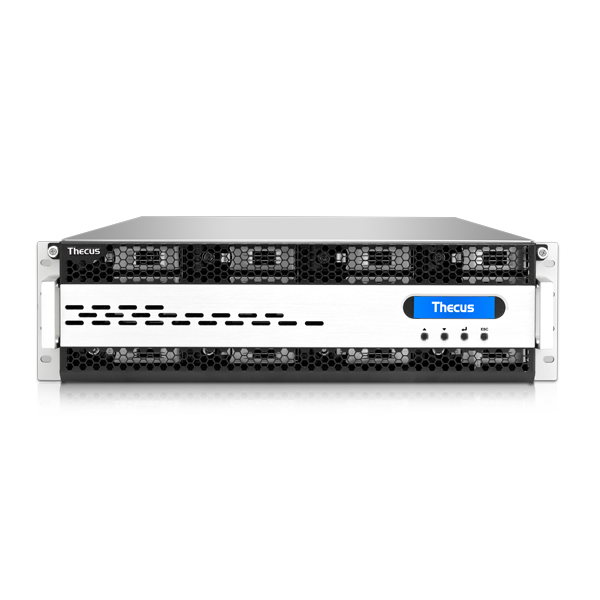

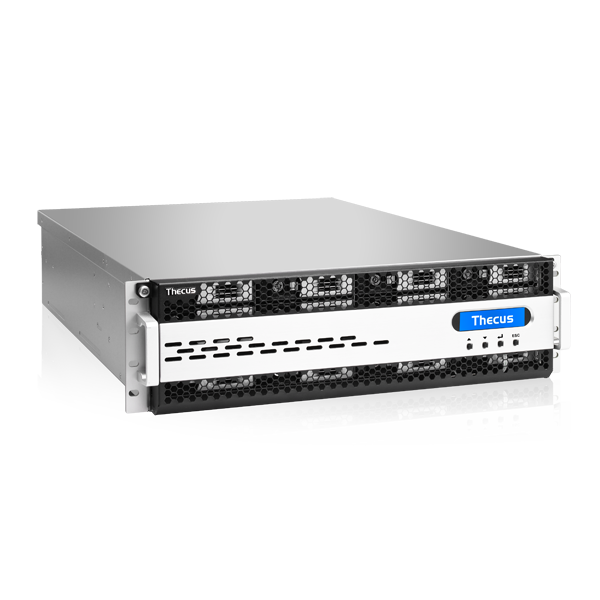

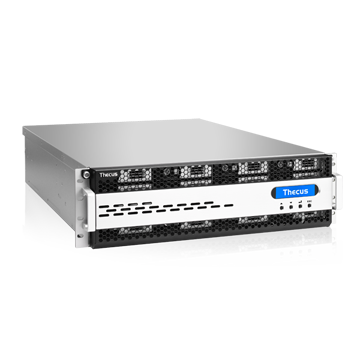

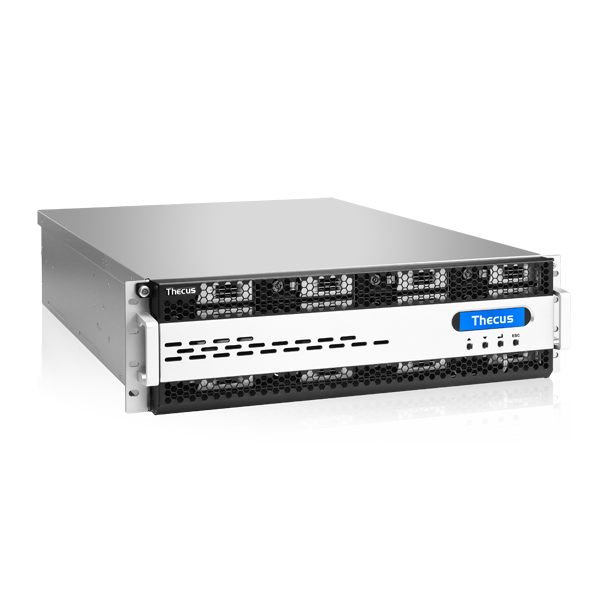

Thecus Technology Corp, today announced the launch of two new enterprise-class NAS, the N12850 and N16850. These 12 and 16-bay network-attached storage solutions offer massive scalability, exceptional performance, supporting cross-platform file sharing, schedulable snapshots and resilient data integrity, to ensure a highly efficient working environment.

“Businesses today are seeking a NAS system that can best handle the demanding day-to-day high storage needs that occur in the workplace. Our new enterprise-class N12850 and N16850 NAS series are the solution. With advanced data protection and integrity mechanisms, these rackmounts NAS provide the ideal choice for storing a business's crucial data.” said Florence Shih, CEO of Thecus Technology Corp.

Equipped with the new Intel Haswell Xeon Processor and 16GB DDR3 ECC RAM, the N12850 and N16850 deliver lightning fast, persistent throughput speeds offering the requirements necessary to efficiently complete CPU-consuming tasks and serves more concurrent tasks at the same time.

With native support for both SAS and SATA drives, users can experience the superior HDD performance of 12G SAS and 6G SATA drives providing flexibility within their storage environment. These new models are 10GbE ready and support High Availability for system redundancy. The units also deploy Daisy Chaining technology which offers connections to four additional D16000s, allowing users to reach storage capacities of up to 640TB.

Software

The N12850 and N16850 NAS offers several new features in an intuitive user interface. These new features including Virtualization, Volume encryption, Thecus App Center and User Profile. This new enterprise series delivers significant improvements in design, performance, and user experience.

Key Specifications

• Intel Haswell XEON processor
• 16GB DDR3 ECC RAM
• AES-NI hardware encryption engine
• Redundant power supply
• 4 x USB 2.0 ports, USB 2 x 3.0 ports
• 1 x VGA port
• 6G SATA and SAS 12G compatibility
• Hot swappable hard drives
• RAID 0, 1, 5, 6, 10, 50, 60 and JBOD

The N12850 and the N16850 from Thecus are perfect for large businesses who have found themselves going from strength to strength, thus seeing their data usage amplify rapidly. With the N12850 and N16850's new processing power, they provide enterprises with a robust, ultra-fast, highly scalable and reliable storage solution.

Availability: Units will begin shipping globally in April, 2016

Specs

1.Hardware Platform

Item	Spec
Processor	Intel® Xeon E3-1231 v3 3.4GHz Processor + Intel C224 chipset
Processor Compatible with	Intel Haswell Celeron /Pentium /Core i3_i5_i7 / XEON **Note: For special OEM/Project only.  Please contact Thecus Sales for more details
SAS/SATA controller (HBA), PCI-e(8-lane)	LSI HBA card 12G SAS/6G SATA Supported
Daisy Chain expansion port	Supported
System Memory	16GB DDR3 ECC RAM Memory Module Pre-installed: 8GB x 2 Total Memory Slots: 4
Memory Expandable up to	32GB Memory Compatibility List
LAN Interface (PCI-e)	RJ-45x4 :Auto MDI/MDI-X WOL supported

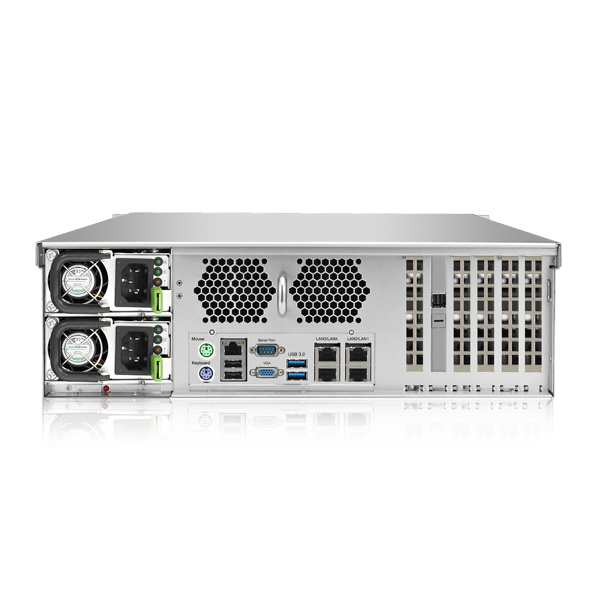

USB Interface	USB 2.0 host port x4 (front x2, back x2)(Type A) USB 3.0 host port x2 (back x2)`
VGA output	Supported
K/B and Mouse (PS2)	Supported
LCM	Displays system status and information
LED indicator	Power:(Blue) System busy: (Yellow) System alert : Redundant power or system fan failure (Red) HDD 1-16 Activity/Fail (White/Red)
Available PCI-e slots	PCI-e x8 (x1) PCI-e x4 (x1) PCI-e x1 (x1)
Power Supply	Redundant power supply 500W or more (80plus)

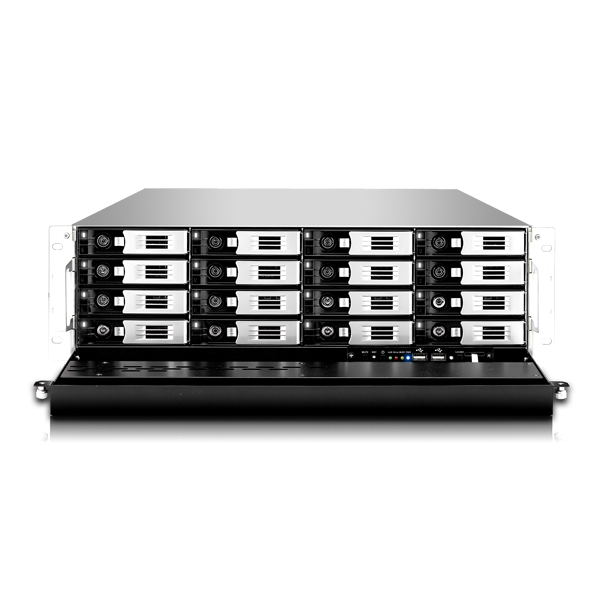

Disk interface	16 SAS/SATA for internal,  support SATA II / SATA III hard disk
Environment	Temperature : 0°C to 40°C (Operation)                     -40°C to 70°C (Non-Operation) Humidity : 0 ~ 80 % R.H. (Non-condensing)
Chassis	3U Rack Mount
Dimension	133 x 440 x 662 (mm)

2. Software Functions

RAID
RAID Modes	RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
Auto-rebuild	Supported
Hot-swap	Supported
Hot Spare	Supported
RAID level Migration	Supported
RAID Expansion	Supported
RAID Volume Encryption	AES256bit
Disk
Power Management	Spin-down when idle
Bad Block Scanning	Supported
SMART Info	Supported
SMART Test	Supported
Disk Roaming	Supports volume-based roaming to other Thecus NAS (require OS5 64bit)
Network
Configuration	Fixed IP address, dynamic IP address
Transport Protocols	TCP/IP/AppleTalk
File Protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link Aggregation	Load balance, Failover, 802.3ad,  Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
vLan	Supported
TCP/IP	IPV4/IPV6
DDNS	Supported
SSH	Supported
UPnP	Supported
UPnP Port forwarding	Supported
Bonjour	Supported
VPN Client/Server	Supported
System status
System Monitor	Monitoring CPU, Memory, Temperature, fan, network utilization and protocols access user count
Syslog Management	1.Send the syslog to assigned location 2.Act as syslog server to receive log info from other systems
Data Access
Client OS Support	Windows XP/2003/2008/2012/Vista/7/8 UNIX/Linux Mac OS X
FTP	Built-in FTP Server with bandwidth control
Secure FTP	Built-in secure FTP server with bandwidth control
TFTP	Users can download and upload files with TFTP programs
Download Manager	BitTorrent downloads (via Transmission Module) NZB downloads (via NZB Module)
WebDAV/WebDAV SSL	Supported
Printer Server (IPP)	1.Supports USB printers 2.Supports a wide range of IPP printers 3.Client can manage print tasks (list/delete) via web user interface
Data Backup
Client Incremental Data Backup	Acronis Server Backup (OEM version)
Client System Disaster Recovery	Acronis Server Backup (OEM version)
Data Burn	1.Burning ISO image file from NAS data 2.Burning ISO image file from NAS image file 3.Read CD/DVD ISO image file to NAS
High Availability	Supported
Data Guard	1.Local backup 2.Remote backup 3.Folder and iSCSI volume based
Mac OS X Time Machine	Supported
Snapshot	Supported (Btrfs)
System failover	Supported
Block Level Access
iSCSI Target/Initiator	Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning	Supported
MPIO	Supported
MCS	Supported
Clustering	Supported
SCSI3 Persistent Group Reservation	Supported
Power management
Scheduled Power On/Off	Supported
Volume management
Multiple RAID	Supported
Multiple File System Selectable	EXT3/EXT4/XFS/Btrfs
Multimedia Support
iTunes Server	Supports AAC, MP3 w/ ID3 tag and WAV
Piczza!™ Photo Server (via module)	Supports GIF, JPG (JPEG), BMP and PNG Supports EXIF display Supports slide shows
Media Server	Supports UPnP AV streaming protocol (via Module)
User Authentication
Local User	Supports built-in user accounts
Local Group	Supports built-in user groups
Windows ADS	Supported
LDAP	Supported
Access Guard	Supports Black & White list / IP Filter
Cloud Backup
DropBox	Supported (via module)
Elephant Driver	Supported (via module)
Amazon S3	Supported
File System
Type	Journaling File System
Language Support	Unicode Support
Authorization (ACL)	“Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders
User Quota	Supported (exclude btrfs)
Administration
User Interface	Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese
Utility Program	MS Windows Setup Wizard Supports Windows 2000/XP/2003/Vista/7/8 Mac OS X Setup Wizard
Email Notifications	Sends system messages via e-mail to the system administrator
Thecus ID/DDNS	Supports One free DDNS registration (e.g. xxx.thecuslink.com)
P2P Connection	Mail registration to connect NAS remotely
SNMP Trap	Sends system information trap out
Mobile Applications (iOS/Android)
Thecus Connect™ (Android)	provides live up-to-date information of your NAS
Thecus Wizard™	offers fast NAS Setup via your phone
T-OnTheGo™	Upload, download and stream multimedia
Orbweb.me	Uploading, downloading, streaming multimedia and webcam via P2P connection
Data Security
Virus Scan	Support Virus Scan
Capacity Expansion
Stackable	Can extend for 5 additional iSCSI volumes from other Thecus NAS
Daisy Chain	Allowed to daisy chain to an additional 4 sets of Thecus D16000
Expand through SAS wide port Interface	1.Can be configured as multi-independent RAID volume 2.Can join to existed RAID volume
Others
Recycle Bin	Supported
Web Disk	Supported (via module)
Web Server (module)	Supported (via module)
ISO Mount	Supported
User Access Log	Supported
User / System Module	Supported
IP Cam Surveillance (module)	Supports up to 10 IP cameras (via module)
Auto Module Installation	Thecus’s module server automatically provides the latest modules and updates through the user interface.
UPS	Supported through USB interface
Disk Wipe	Supported
Disk Clone	Supported
Local Display	X-Window via VGA output
