N12910

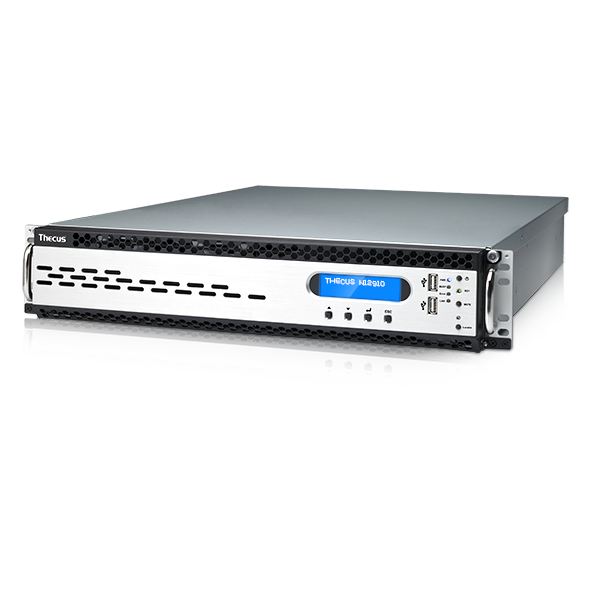

N12910 Faster, More Reliable Enterprise Storage at the Forefront of Technology
  • Enterprise Size for Enterprise Tasks
  • HA System Redundancy for Perfect Operational Performance
  • Real-time Remote Replication and System Disaster Recovery
  • Bundled with Free Acronis® True Image
  • SATA III for Ultra-Fast Transfer Speeds
  • 7 Modes of Link Aggregation for Faster Transfers
  • RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
  • Secure Remote Access with VPN Connection


Features

  • دسترس‌پذيری بالا
    برای اولین بار، کلیه اطلاعات شما بطور كامل و بدون تاخير در دسترستان می‌باشد. اين ويژگی همه اطلاعات را به طور جداگانه بر روی دو دستگاه NAS يكسان نگهداری می‌كند و درصورت بروز هرگونه رخدادی بر روی يكی از دستگاه‌ها، ديگری بدون وقفه شروع به سرويس دهی می‌كند.
  • PLEX Media Center
    The Plex Media Server is both the heart and brains for any digital media system. The free server is a module available on the Thecus® App Center that allows you to set up and manage your media. With the Plex Media Server installed on your Thecus® NAS, various devices on your network (such as your Xbox 360 and mobile devices) can connect to and stream your local and online media.
  • Snapshot Backup
    With BTRFS support, Thecus NAS users can enjoy the simplicity of snapshot backups. Through BTRFS subvolumes, snapshots of data at various time points can be manually or automatically made and just as easily later restored to rollback files or folders to previous states.
  • Disk Clone and Wipe
    Disk Clone allows users to copy the entire contents of a disk to one or many other disks while Disk Wipe allows for permanent volume data destruction.
  • VPN Server
    A VPN Server allows users to remotely access a secure network.  with VPNs, businesses will be able to utilize a cost-effective, scalable and secured network infrastructure for its client base.
  • 10GbE Ready
    بطور معمول مراکز داده نیاز به سطحی بالاتر از طیف سرعت ارتباطات معمول امروز دارند. شركت Thecus از تکنولوژی 10GbE بر روی کلیه محصولات خود پشتیبانی می‌کند و آماده پاسخ گویی به نیازهای امروز و فردا است.

  • اتصالات USB 3.0
    نسل جدید ارتباط (USB 3.0) با سرعتی 10 برابر سریعتر از USB 2.0 توسط این محصول پشتیبانی می‌شود که می‌توان انواع تجهیزات از قبیل دوربین دیجیتال، تلفن‌های هوشمند، هاردهای اکسترنال و ... را با استفاده از این تکنولوژی به دستگاه متصل نمود و از سرعت بالای این فناوری در کنار تکنولوژی‌های قدیمی‌تر (USB 2.0, USB 1.1) استفاده کرد.
  • Acronis True Image
    Thecus با مشارکت کمپانی Acronis و تکیه بر نرم‌افزار تهیه نسخه پشتیبان True Image با محیطی ساده و کاربر پسند، این امکان را فراهم می‌کند تا فقط با یک کلیک از فایل های مهم خود نسخه پشتیبان تهیه کنید.
  • RAID چندگانه
    Thecus این امکان را فراهم می‌کند تا با استفاده از انواع RAID ها نظیر (0، 1، 5، 6، 10، 50، 60 و JBOD) بتوانید از داده‌های خود محافظت کنید. در صورت عملکرد نادرست و یا معیوب شدن یکی از دیسک‌ها، به سرعت هارد معیوب جایگزین شده و اطلاعات بازنویسی می‌گردند.
  • فایل سیستم چندگانه
    پشتیبانی از فایل سیستم های مختلف (EXT3, EXT4, Btrfs, XFS) باعث انعطاف‌پذیری سیستم می‌شود و این امکان را فراهم می‌کند تا کاربر به راحتی در محیط‌های مختلف بصورت همزمان به اطلاعات خود دسترسی پیدا کند.
  • iSCSI Thin-Provisioning
    با استفاده از این تکنولوژی در کنار سرعت فوق العاده iSCSI می‌توان از فضاهای ذخیره‌سازی خالی موجود به صورت Thin-Provision استفاده نمود و بهره‌وری کلی سیستم در استفاده از منابع را بهبود بخشید.
  • اتصالات iOS/Android
    در دنیای جدید دستیابی به اطلاعات از هرجایی جزو مهمترین موضوعات می‌باشد. شما می‌توانید با استفاده از T-OnTheGo و T-Dashboard کلیه اطلاعات را از طریق اتصالات مبتنی بر سیستم عامل‌های iOS/Android ارسال و دریافت نمایید و یا حتی به مدیریت دستگاه NAS بپردازید.
  • Rsync
    این تکنولوژی امکان پشتیبان‌گیری از راه دور را مبتنی بر سیستم عامل لینوکس ارائه می‌نماید.
  • User Quota
    برای مدیریت آسان فضای دیسک‌ها بر روی NAS، می‌توان فضای ذخیره‌‌سازی را میان کاربران تقسیم نمود و به هر کاربر سهم مورد نیاز خود را اختصاص داد.

  • درگاه PCI-e
    این درگاه امکان استفاده از فناوری‌های نوظهور را فراهم می‌نماید. شما می‌توانید با این درگاه لذت استفاده از کارتهای شبکه 10G و کارت های آداپتور USB 3.0 را داشته باشید.

Overview


09/29/2016- Thecus Technology Corp, today  unveiled their new enterprise-level NAS, the N12910. This 12-bay rackmount is the first to bring the Skylake Intel processor and next-generation RAM to the Thecus product range. Offering enhanced processing power and speed, alongside all the functionality and reliability that is synonymous with Thecus' enterprise-level NAS, this rackmount provides a powerful solution to tackle even the most intricate business storage requirements.

“Thecus is once again at the forefront of technology, the addition of this next generation hardware into the Thecus product line allows businesses to access their secured data faster, with greater reliability and robustness. The N12910 delivers Thecus NAS users with a superior choice when selecting a storage solution for their company's future” said Florence Shih, General Manager of Thecus Technology Corp.

The N12910 is equipped with the Intel® Skylake Core i3-6100 3.70 GHz Dual-Core processor. This Intel processor architecture brings improvement with its manufacturing process, improved from the 20nm of Haswell (4th generation Core) to 14nm, this upgrade improves and delivers fast single-core performance while reducing the amount of electricity required.

Upgrading from the previous generation of DDR3 RAM, these NAS are equipped with 4GB (expandable to 64GB) DDR4 ECC RAM. DDR4 is the next evolution in DRAM, bringing even higher performance with migration to higher speed, more robust control features while improving energy economy with reduction in memory power demand.

The N12910 runs on the latest ThecusOS 7.0, providing an optimized, feature-rich platform with an intuitive user interface and easy navigation. Key new features include Photo Center, Thecus App Center and File Center. ThecusOS 7.0 delivers significant advancements in productivity, flexibility, and performance.

The N12910 from Thecus® is designed to meet the needs of large businesses who operate with extensive amounts of data and who expect stalwart performance out of their NAS. Now with a faster processor and next-generation DDR4 RAM, this enterprise NAS delivers accelerated response time and handles multitasking with even greater ease than before. This robust, rapid and powerful rackmount storage solution further delivers on Thecus' ethos of ‘empowering professionals'.

Specs

1.Hardware Platform
Item Spec
Processor Intel® Skylake Core-i3 6100 3.7GHz Dual Core Processor
Processor Compatible with Intel Skylake Celeron /Pentium /Core i3_i5_i7 / XEON
**Note: For special OEM/Project only.  Please contact Thecus Sales for more details
System Memory 4GB DDR4 ECC SDRAM shipped
Memory expandable up to 64GB Memory Compatibility List
LAN Interface (PCI-e) RJ-45x2 :Auto MDI/MDI-X
WOL supported
USB Interface USB 2.0 host port x2 (front x2)
USB 3.0 host port x4 (back x4)
VGA/DVI/HDMI output Supported
Audio(5+1), SPDIF Supported
K/B and Mouse (PS2) Supported
LCM Displays system status and information
LED indicator Power:(Blue)
System busy: (Yellow)
System alert : Redundant power or system fan failure (Red)
HDD 1-12 Activity/Fail (Green/Red)
Available PCI-e slots PCI-e x16 (x1) or PCI-e x8 (x2)
PCI-e x1 (x1)
Power Supply Redundant power supply 500W or more (80plus)
Disk interface 12 x SATA for internal,  support SATA II / SATA III hard disk
Environment Temperature : 0°C to 40°C (Operation)
                    -40°C to 70°C (Non-Operation)
Humidity : 0 ~ 80 % R.H. (Non-condensing)
Chassis 2U Rack Mount
Dimension 89x440x662(mm)

2. Software Functions
RAID
RAID Modes RAID 0, 1, 5, 6, 10, 50, 60 and JBOD
Auto-rebuild Supported
Hot-swap Supported
Hot Spare Supported
RAID level Migration Supported
RAID Expansion Supported
RAID Volume Encryption AES256bit
Disk
Power Management Spin-down when idle
Bad Block Scanning Supported
SMART Info Supported
SMART Test Supported
Disk Roaming Supports volume-based roaming to other Thecus NAS (require OS7 64bit)
Disk Security Supported
Network
Configuration Fixed IP address, dynamic IP address
Transport Protocols TCP/IP/AppleTalk
File Protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link Aggregation Load balance, Failover, 802.3ad,  Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
vLan Supported
TCP/IP IPV6 & IPV4
DDNS Supported
SSH Supported
UPnP Supported
UPnP Port forwarding Supported
Bonjour Supported
VPN Client/Server Supported
System status
System Monitor Monitoring CPU, Memory, Temperature, fan, network utilization and protocols access user count
Syslog Management 1.Send the syslog to assigned location
2.Act as syslog server to receive log info from other systems
Data Access
Client OS Support Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X
FTP Built-in FTP Server with bandwidth control
Secure FTP Support explicit TLS
TFTP Users can download and upload files with TFTP programs
Download Manager BitTorrent downloads (via Transmission Module)
NZB downloads (via NZB Module)
Printer Server (IPP) Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks  (list/delete) via web user interface
WebDAV/WebDAV SSL Supported
Data Backup
Client Incremental Data Backup Acronis True image (OEM version)
Client System Disaster Recovery Acronis True image (OEM version)
Local folder/iSCSI Backup Supported
Remote folder/iSCSI Backup Supported
High Availability Supported
Mac OS X Time Machine Supported
Snapshot Supported
System failover Supported
Block Level Access
iSCSI Target/Initiator Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning Supported
MPIO Supported
MCS Supported
Clustering Supported
SCSI3 Persistent Group Reservation Supported
Power management
Scheduled Power On/Off Supported
Volume management
Multiple RAID Supported
Multiple File System Selectable EXT4/XFS/Btrfs
Multimedia Support
iTunes Server Supports AAC, MP3 w/ ID3 tag and WAV
Media Server Supports UPnP AV streaming protocol (via Module)
User Authentication
Local User Supports built-in user accounts
Local Group Supports built-in user groups
Windows ADS Supported
LDAP Supported
Access Guard Supports Black & White list / IP Filter
User Profile
Photo Center Supported
File Center Supported
APP Center Supported
Surveillance Center Supported
Cloud Backup
DropBox Supported (via module)
Elephant Drive Supported (via module)
Amazon S3 Supported
File System
Type Journaling File System
Language Support Unicode Support
Authorization (ACL) “Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders
User Quota Supported (exclude Btrfs)
Folder Quota Supported (btrfs only)
Administration
User Interface Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese
Utility Program MS Windows Setup Wizard
Supports Windows XP and after
Mac OS X Setup Wizard
Email Notifications Sends system messages via e-mail to the system administrator
P2P Connection Mail registration to connect NAS remotely
SNMP Trap Sends system information trap out
Mobile Applications (iOS/Android)
Thecus Connect™ (Android) Provides live up-to-date information of your NAS
Thecus Wizard™ Offers fast NAS Setup via your phone
T-OnTheGo™ Upload, download and stream multimedia
Orbweb.me Uploading, downloading, streaming multimedia and webcam via P2P connection
Data Security
Virus Scan Support Virus Scan
Capacity Expansion
Stackable Can extend for 5 additional iSCSI volumes from other Thecus NAS
Scale-Out Dynamic Volume Expansion
Others
Recycle Bin Supported
Web Server (module) Supported (via module)
ISO Mount Supported
IP Cam Surveillance (module) Supported via Motion Eye
UPS Supported through USB interface
Disk Wipe Supported
Disk Clone Supported
Local Display X-Window via HDMI output

Package Contents

Accessory Bag Ethernet Cable Power Cord Universal CD
QIG Warranty Card HDD Compatibility List Card Sliding Shelves
